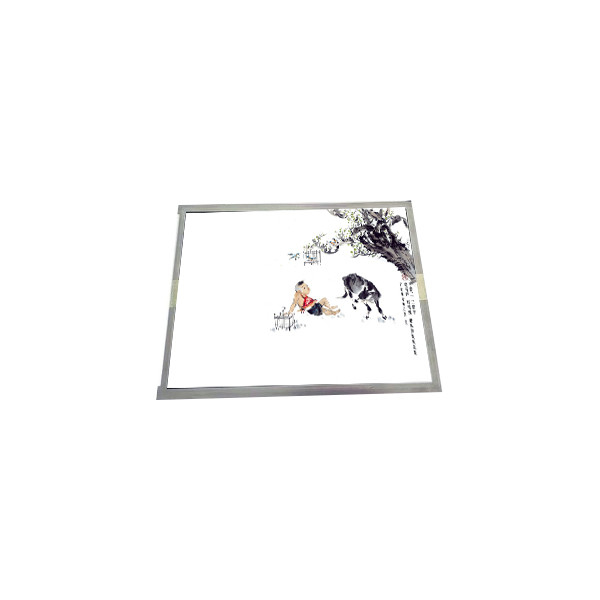

LQ150X1LAP5 15.0 inch 400 cd/m2 LVDS LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ150X1LAP5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ150X1LAP5 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 85PPI |
| Pixel Format: | RGBW Vertical Stripe | Active Area: | 304.128(W)×228.096(H) Mm |
| Used For: | Laptop | Refresh Rate: | 60Hz |
Product Description
LQ150X1LAP5 15.0 inch 400 cd/m2 LVDS LCD Screen Panel
LQ150X1LAP5 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ150X1LAP5 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | - |
| Outline Size | 315.8(W)×243.2(H)×10.5(D) mm |
| Surface | Glare (Haze 0%), Hard coating (2H), Antireflection |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 450:1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Colors | 262K 72%NTSC |
| Lamp Type | 2 pcsCCFL, 10K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
| Application | Laptop |
| Signal Interface | LVDS (1 ch, 6-bit), 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 45 °C ;Storage Temp.: -25 ~ 60 °C |
| LQ150X1LAP5 15.0 inch 400 cd/m2 LVDS LCD Screen Panel | |
LQ150X1LAP5 LCD Panel Shipping and Package :
LQ150X1LAP5 LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
