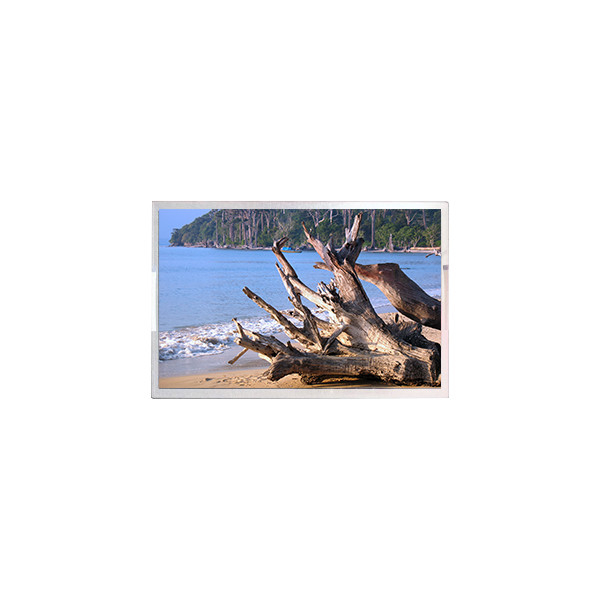

BS067XMQ-L15 6.7 inch Touch LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | BS067XMQ-L15 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | BS067XMQ-L15 | Diagonal Size: | 6.7" |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, CELL , Q-CUT (Full Cell) | Resolution: | 1080(RGB)×2400 391PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 70.0812(W)×155.736(H) Mm |
| Display Mode: | ADS, Normally Black, Transmissive | Backlight: | No B/L |
| Good View At: | Symmetry | Application: | Mobile Phone |
Product Description
BS067XMQ-L15 6.7 inch Touch LCD Display Screen
BS067XMQ-L15 LCD Panel Product details :
| Brand | BOE |
| Model P/N | BS067XMQ-L15 |
| Diagonal Size | 6.7" |
| Panel Type | LTPS TFT-LCD, CELL , Q-CUT (Full Cell) |
| Resolution | 1080(RGB)×2400 391PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 70.0812(W)×155.736(H) mm |
| Bezel Opening | - |
| Outline Dim. | 71.38(W)×159.24(H)×0.28(D) mm |
| Treatment | - |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 27 (Max.)(Tr+Td) ms |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Glass Thickness | 0.14+0.14 mm |
| Transmissivity | 5.1% (Typ.)(with Polarizer) |
| Support Color | 16.7M 83% sRGB |
| Light Source | No B/L |
| Weight | - |
| Designed For | Mobile Phone |
| Frame Rate | 120Hz |
| Touch Panel | In-Cell Touch |
| Driver IC list | Suggest COG NT36672C, ILI7807S-1, TD4377, FT8720 |
| Environment | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
Confirmation Before Purchasing BS067XMQ-L15 LCD Panel :
Check Model Details: Verify your machine model, screen size, and part number carefully. If you are uncertain about compatibility, please send us the specific model number and photos of your original screen for accurate guidance.
Compatible Model Number: The LED panel we send may have a compatible model number that differs slightly from your original screen's model. However, we guarantee that it will be fully compatible with your machine model.
Quality Assurance: All items undergo testing before shipment to ensure functionality. Please note that adhesive tape is not included by default. If you require adhesive tape, kindly leave us a message when placing your order.
If you have any inquiries or need further assistance regarding the purchase of the BS067XMQ-L15 LCD panel, feel free to reach out to us. We are here to help ensure a smooth and successful transaction.
Payment Policy for BS067XMQ-L15 LCD Panel :
Accepted Payment Methods: We accept payments via PayPal and ALI, but only with a confirmed address.
Tax Responsibility: Any applicable taxes in the buyer's country are the sole responsibility of the buyer.
Customs Declaration: To help minimize potential taxes for buyers, we may declare a lower value on packages.
BS067XMQ-L15 LCD Panel Shipping and Package :
Warranty Policy for BS067XMQ-L15 LCD Panel :
We offer the following warranty terms for your BS067XMQ-L15 LCD panel:
90-Days Replacement Warranty: If your LCD panel encounters any issues within 90 days of purchase, you are eligible for a replacement.
Please contact us for further instructions on how to proceed with the replacement process.
Return Window: You can return the LCD panel within 14 days of receiving it, provided it meets our return criteria (e.g., unused, in original packaging).
Return Shipping: The buyer is responsible for covering the cost of return shipping.
We offer the following warranty terms for your BS067XMQ-L15 LCD panel:
90-Days Replacement Warranty: If your LCD panel encounters any issues within 90 days of purchase, you are eligible for a replacement.
Please contact us for further instructions on how to proceed with the replacement process.
Return Window: You can return the LCD panel within 14 days of receiving it, provided it meets our return criteria (e.g., unused, in original packaging).
Return Shipping: The buyer is responsible for covering the cost of return shipping.
BS067XMQ-L15 LCD Panel FAQ :
Q: How long will I receive my goods BS067XMQ-L15 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of BS067XMQ-L15 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of BS067XMQ-L15 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Want to Know more details about this product
