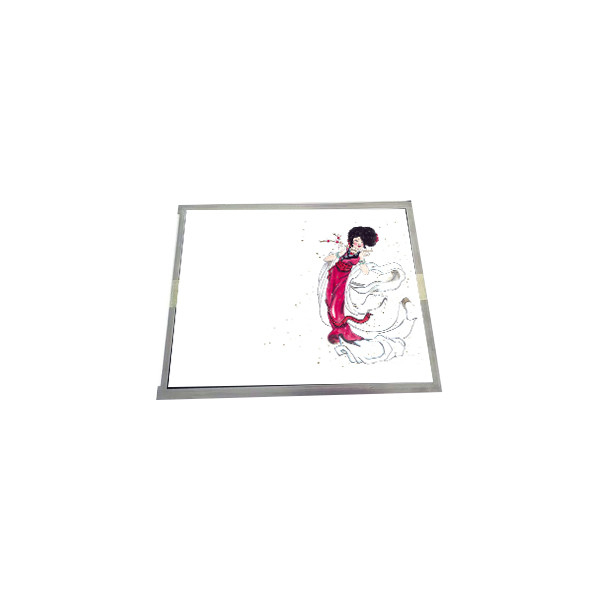

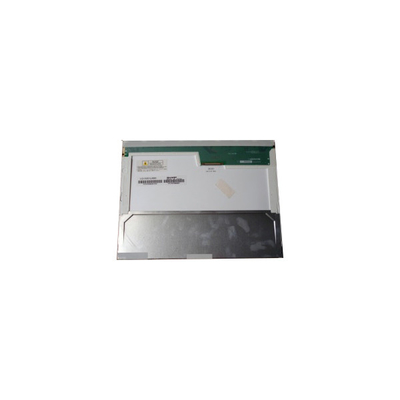

LQ150X1LAM3 1024*768 600 cd/m2 LCD Screen for Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ150X1LAM3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ150X1LAM3 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 85PPI |
| Pixel Format: | RGBW Vertical Stripe | Active Area: | 304.128(W)×228.096(H) Mm |
| Designed For: | Laptop | Frame Rate: | 60Hz |
Product Description
LQ150X1LAM3 1024*768 600 cd/m2 LCD Screen for Laptop
LQ150X1LAM3 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ150X1LAM3 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | - |
| Outline Dim. | 315.8(W)×243.2(H)×10.5(D) mm |
| Luminance | 600 cd/m² (Typ.) |
| View Direction | 6 o'clock |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Support Color | 262K 42% NTSC |
| Form Style | Wedge (PCBA Bent, T≥5.2mm) |
| Frame Rate | 60Hz |
| Treatment | Glare (Haze 0%), Hard coating (2H), Antireflection |
| Contrast Ratio | 450:1 (Typ.) (TM) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | CCFL [2 pcs] , 10K hours , W/O Driver |
| Designed For | Laptop |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit)30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 45 °C; Storage Temperature: -25 ~ 60 °C |
| LQ150X1LAM3 1024*768 600 cd/m2 LCD Screen for Laptop | |
LQ150X1LAM3 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
LQ150X1LAM3 LCD Panel Shipping and Package :
LQ150X1LAM3 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
LQ150X1LAM3 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
LQ150X1LAM3 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of LQ150X1LAM3 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of LQ150X1LAM3 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods LQ150X1LAM3 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Do you accept sample orders of LQ150X1LAM3 ?
A: Of course!sample order is welcome !
Want to Know more details about this product
