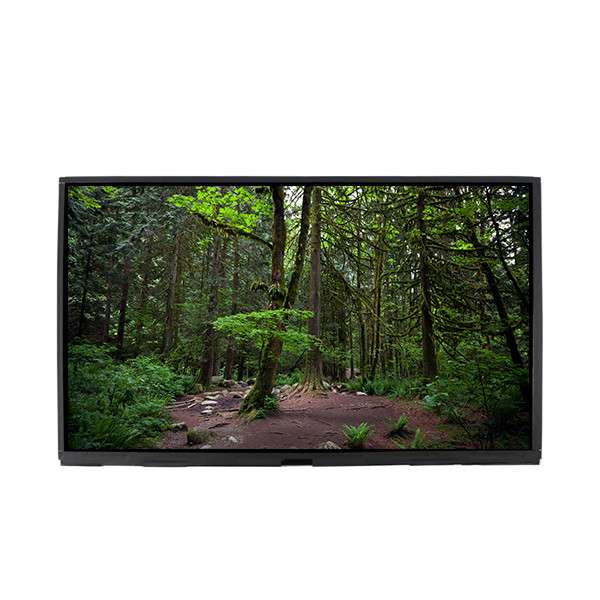

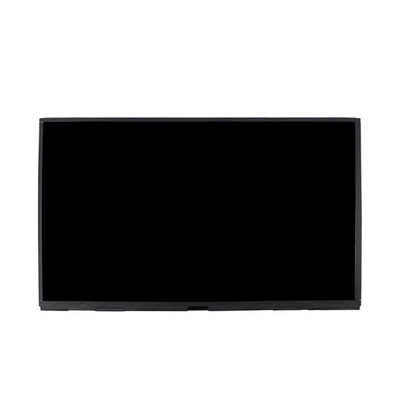

G133ZAN01.1 13.3 inch LCD Display Screen for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G133ZAN01.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G133ZAN01.1 | Diagonal Size: | 13.3" |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, LCM | Resolution: | 3840(RGB)×2160, UHD 332PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 293.76(W)×165.24(H) Mm |
| Work Mode: | AHVA, Normally Black, Transmissive | Backlight: | WLED, 30K Hours, With LED Driver |
| Good View At: | Symmetry | Application: | Industrial |
Product Description
G133ZAN01.1 13.3 inch LCD Display Screen for Industrial
G133ZAN01.1 LCD Panel Product details :
| Brand | AUO |
| Model P/N | G133ZAN01.1 |
| Diagonal Size | 13.3" |
| Panel Type | LTPS TFT-LCD, LCM |
| Resolution | 3840(RGB)×2160, UHD 332PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 293.76(W)×165.24(H) mm |
| Bezel Opening | - |
| Outline Dim. | 298.96(H)×186.42(V)×2.2(D) mm |
| Treatment | Glare (Haze 0%), Hard coating (1H), Reflection 5.0% (Typ.) |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 1.07B 100%sRGB |
| Light Source | WLED, 30K hours, With LED Driver |
| Weight | 190g (Max.) |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (4 Lanes), eDP1.4a, 40 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
Confirmation Before Purchasing G133ZAN01.1 LCD Panel :
Check Model Details: Verify your machine model, screen size, and part number carefully. If you are uncertain about compatibility, please send us the specific model number and photos of your original screen for accurate guidance.
Compatible Model Number: The LED panel we send may have a compatible model number that differs slightly from your original screen's model. However, we guarantee that it will be fully compatible with your machine model.
Quality Assurance: All items undergo testing before shipment to ensure functionality. Please note that adhesive tape is not included by default. If you require adhesive tape, kindly leave us a message when placing your order.
If you have any inquiries or need further assistance regarding the purchase of the G133ZAN01.1 LCD panel, feel free to reach out to us. We are here to help ensure a smooth and successful transaction.
Payment Policy for G133ZAN01.1 LCD Panel :
Accepted Payment Methods: We accept payments via PayPal and ALI, but only with a confirmed address.
Tax Responsibility: Any applicable taxes in the buyer's country are the sole responsibility of the buyer.
Customs Declaration: To help minimize potential taxes for buyers, we may declare a lower value on packages.
G133ZAN01.1 LCD Panel Shipping and Package :
Warranty Policy for G133ZAN01.1 LCD Panel :
We offer the following warranty terms for your G133ZAN01.1 LCD panel:
90-Days Replacement Warranty: If your LCD panel encounters any issues within 90 days of purchase, you are eligible for a replacement.
Please contact us for further instructions on how to proceed with the replacement process.
Return Window: You can return the LCD panel within 14 days of receiving it, provided it meets our return criteria (e.g., unused, in original packaging).
Return Shipping: The buyer is responsible for covering the cost of return shipping.
We offer the following warranty terms for your G133ZAN01.1 LCD panel:
90-Days Replacement Warranty: If your LCD panel encounters any issues within 90 days of purchase, you are eligible for a replacement.
Please contact us for further instructions on how to proceed with the replacement process.
Return Window: You can return the LCD panel within 14 days of receiving it, provided it meets our return criteria (e.g., unused, in original packaging).
Return Shipping: The buyer is responsible for covering the cost of return shipping.
G133ZAN01.1 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of G133ZAN01.1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of G133ZAN01.1 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of G133ZAN01.1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of G133ZAN01.1 ?
A: we will give you tracking number then you can trace your order from website.
