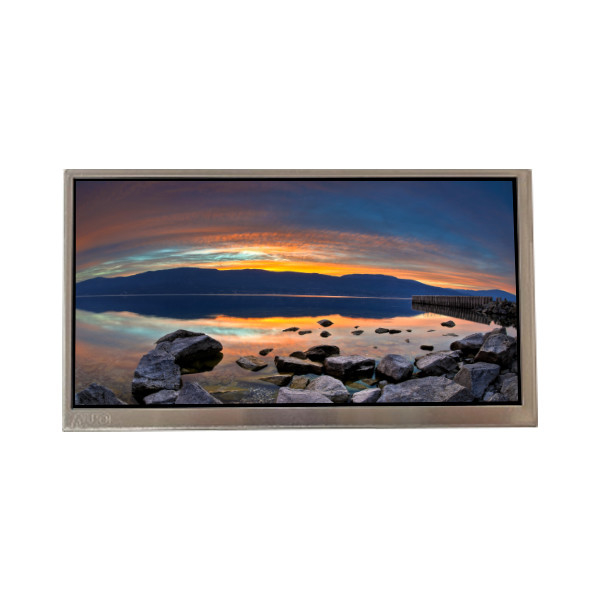

C070VW02 V1 7.0 inch 800*480 Touch LCD Display Screen

All Category

Floor Standing Digital Signage

C070VW02 V1 7.0 inch 800*480 Touch LCD Display Screen

Brand Name:	AUO
Model Number:	C070VW02 V1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

C070VW02 V1

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 133PPI

Active Area:

152.4(W)×91.44(H) Mm

Pixel Format:

RGB Vertical Stripe

Work Mode:

TN, Normally White, Transmissive

Backlight:

WLED [4S4P], 10K Hours, W/O Driver

Good View At:

6 O'clock

Application:

Automotive Display

Supply Ability:

100000 Unit/Units per Month

Product Description

C070VW02 V1 7.0 inch 800*480 Touch LCD Display Screen

C070VW02 V1 LCD Panel Product details :

Brand	AUO
Model P/N	C070VW02 V1
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 133PPI
Pixel Format	RGB Vertical Stripe
Active Area	152.4(W)×91.44(H) mm
Bezel Opening	153.6(W)×92.64(H) mm
Outline Dim.	170.8(H)×107.95(V)×21.5(D) mm
Treatment	Antiglare (Haze 40%), Hard coating (3H)
Luminance	350 cd/m² (Min.)
Contrast Ratio	300:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	20/30 (Max.)(Tr/Td)
Viewing Angle	60/60/40/60 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K
Light Source	WLED [4S4P], 10K hours, W/O Driver
Weight	300±30g
Designed For	Automotive Display
Frame Rate	-
Touch Panel	4-wire Resistive Touch
Interface Type	TTL (1 ch, 6-bit), 82 pinsConnector
Power Supply	3.3/9.8/15/-7V (Typ.)(VDD/AVDD/VGH/VGL)
Environment	Operating Temperature: -40 ~ 80 °C ; Storage Temperature: -40 ~ 95 °C

Confirmation Before Purchasing C070VW02 V1 LCD Panel :

Check Model Details: Verify your machine model, screen size, and part number carefully. If you are uncertain about compatibility, please send us the specific model number and photos of your original screen for accurate guidance.

Compatible Model Number: The LED panel we send may have a compatible model number that differs slightly from your original screen's model. However, we guarantee that it will be fully compatible with your machine model.

Quality Assurance: All items undergo testing before shipment to ensure functionality. Please note that adhesive tape is not included by default. If you require adhesive tape, kindly leave us a message when placing your order.

If you have any inquiries or need further assistance regarding the purchase of the C070VW02 V1 LCD panel, feel free to reach out to us. We are here to help ensure a smooth and successful transaction.

Payment Policy for C070VW02 V1 LCD Panel :

Accepted Payment Methods: We accept payments via PayPal and ALI, but only with a confirmed address.

Tax Responsibility: Any applicable taxes in the buyer's country are the sole responsibility of the buyer.

Customs Declaration: To help minimize potential taxes for buyers, we may declare a lower value on packages.

C070VW02 V1 LCD Panel Shipping and Package :

Warranty Policy for C070VW02 V1 LCD Panel :

We offer the following warranty terms for your C070VW02 V1 LCD panel:

90-Days Replacement Warranty: If your LCD panel encounters any issues within 90 days of purchase, you are eligible for a replacement.

Please contact us for further instructions on how to proceed with the replacement process.

Return Window: You can return the LCD panel within 14 days of receiving it, provided it meets our return criteria (e.g., unused, in original packaging).

Return Shipping: The buyer is responsible for covering the cost of return shipping.

C070VW02 V1 LCD Panel FAQ :

Q: How long will I receive my goods C070VW02 V1 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Can you give me a discount if I need a large quantity of C070VW02 V1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of C070VW02 V1 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90days warranty .
