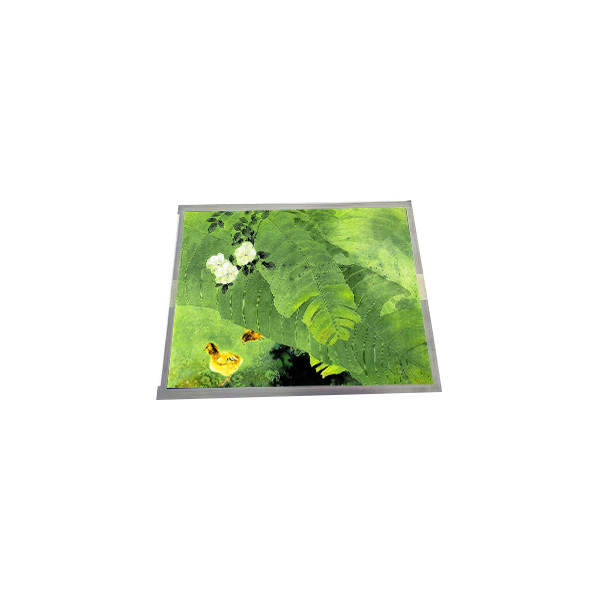

LQ150X1DR55 15.0 inch 1024*768 330 cd/m2 LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ150X1DR55 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ150X1DR55 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 85PPI |
| Pixel Format: | RGBW Vertical Stripe | Active Area: | 304.128(W)×228.096(H) Mm |
| Used For: | Desktop Monitor | Refresh Rate: | 60Hz |
Product Description
LQ150X1DR55 15.0 inch 1024*768 330 cd/m2 LCD Screen Panel
LQ150X1DR55 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ150X1DR55 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 307.7(W)×231.7(H) mm |
| Outline (mm) | 340×264×17.5 (H×V×D) |
| Treatment | Hard coating (2H), Reflection 1.7% (Max.) |
| Luminance | 330 cd/m² (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) (TM) |
| Viewing Angle | 65/65/50/70 (Typ.)(CR≥10) |
| Response | 10/35 (Typ.)(Tr/Td) ms |
| Good View at | - |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K |
| Backlight | 4 pcsCCFL, 50K hours, No Driver |
| Mass | 1.35Kgs (Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | Parallel RGB (2 ch, 6-bit), Connector60 pins |
| Voltage Supply | 5.0V (Typ.)(VCC) |
| Max. Ratings | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LQ150X1DR55 15.0 inch 1024*768 330 cd/m2 LCD Screen Panel | |
LQ150X1DR55 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
LQ150X1DR55 LCD Panel Shipping and Package :
LQ150X1DR55 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
LQ150X1DR55 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
LQ150X1DR55 LCD Panel FAQ :
Q: Can You declare my order of LQ150X1DR55 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods LQ150X1DR55 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of LQ150X1DR55 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of LQ150X1DR55 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
