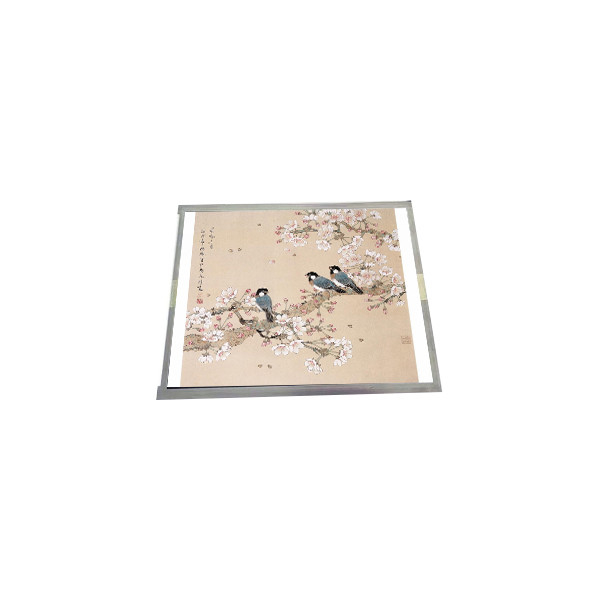

Name: 1024*768 LQ150X1DG51 15.0 inch LCD Screen for Desktop Monitor
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: LQ150X1DG51
Availability: InStock

Brand Name:	Sharp
Model Number:	LQ150X1DG51
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ150X1DG51

Diagonal Size:

15.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×768, XGA 85PPI

Pixel Format:

RGBW Vertical Stripe

Active Area:

304.128(W)×228.096(H) Mm

Used For:

Desktop Monitor

Refresh Rate:

60Hz

Supply Ability:

100000 Unit/Units per Month

Product Description

1024*768 LQ150X1DG51 15.0 inch LCD Screen for Desktop Monitor

LQ150X1DG51 LCD Panel Product details :

Brand	Sharp
Model P/N	LQ150X1DG51
Diagonal Size	15.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 85PPI
Pixel Format	RGB Vertical Stripe
Active Area	304.128(W)×228.096(H) mm
Bezel Opening	307.7(W)×231.7(H) mm
Outline(mm)	340(W)×264(H)×15.5(D)
Luminance	220 (Typ.)(cd/m²)
Viewing Angle	70/70/60/60 (Typ.)(CR≥10)
Good View at	-
Color Depth	262K
Mass	1.35Kgs (Max.)
Refresh Rate	60Hz
Treatment	Antiglare (Haze 28%), Hard coating (2H)
Contrast Ratio	300 : 1 (Typ.) (TM)
Work Mode	TN, Normally White, Transmissive
Response	10/35 (Typ.)(Tr/Td) ms
Backlight	4 pcs CCFL , 50K hours , No Driver
Used for	Desktop Monitor
Touchscreen	Without
Signal Type	Parallel RGB (2 ch, 6-bit), 60 pins Connector
Voltage Supply	5.0V (Typ.)(VCC)
Max. Ratings	Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C
1024*768 LQ150X1DG51 15.0 inch LCD Screen for Desktop Monitor

LQ150X1DG51 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

LQ150X1DG51 LCD Panel Shipping and Package :

1024*768 LQ150X1DG51 15.0 inch LCD Screen for Desktop Monitor 0

LQ150X1DG51 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

LQ150X1DG51 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

LQ150X1DG51 LCD Panel FAQ :

Q: When would you ship,IF I order LQ150X1DG51 now?

A: The order are shipped within 1-2 working days after received the payment.

Q: Do you accept the sample order?

A: Yes , sample order is welcome.

Q: How to order if I don't know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.

Q: Can you declared low value for my order when shipping?

A: Yes, We can do it for you if you need.
