LCD Screen Display Panel

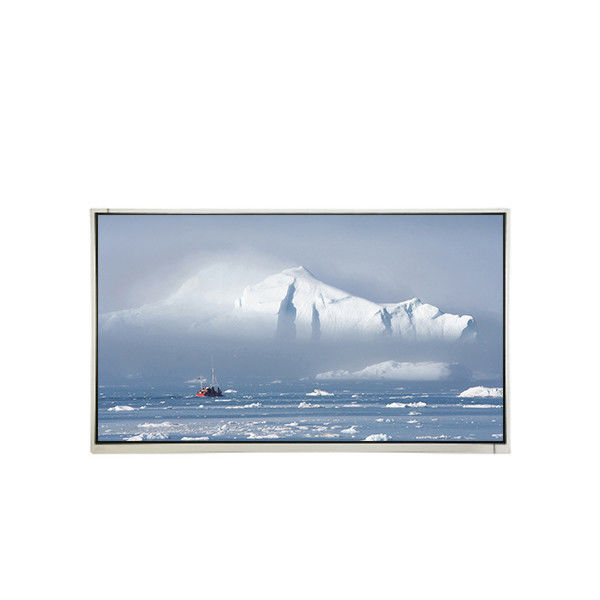

M238HAN01.1 23.8 inch LCD Display Screen for Desktop Monitor

All Category

Floor Standing Digital Signage

Multi Touch Screen Panel

chance

info@yongs-hk.com

86-18575563918

Contact Now

M238HAN01.1 23.8 inch LCD Display Screen for Desktop Monitor

Brand Name:	AUO
Model Number:	M238HAN01.1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M238HAN01.1

Diagonal Size:

23.8"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 92PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

527.04(W)×296.46(H) Mm

Operating Mode:

AHVA, Normally Black, Transmissive

Light Source:

4 Strings WLED , 30K Hours , No Driver

View Direction:

Symmetry

Designed For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

M238HAN01.1 23.8 inch LCD Display Screen for Desktop Monitor

M238HAN01.1 LCD Panel Product details :

Brand	AUO
Model P/N	M238HAN01.1
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 92PPI
Pixel Format	RGB Vertical Stripe
Active Area	527.04(W)×296.46(H) mm
Bezel Opening	-
Outline(mm)	534.74(W)×313.26(H)×12.1(D)
Luminance	250 (Typ.)(cd/m²)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Good View at	Symmetry
Color Depth	16.7M 75% NTSC
Mass	2.18Kgs (Typ.)
Refresh Rate	60Hz
Treatment	Antiglare, Hard coating (3H)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Work Mode	AHVA, Normally Black, Transmissive
Response	14 (Typ.)(G to G) ms
Backlight	4 strings WLED , 30K hours , No Driver
Used for	Desktop Monitor
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit), 30 pins Connector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

M238HAN01.1 LCD Screen Regarding Us:

For over a decade, we have been a trusted name in the Chinese market, specializing in the sale of high-quality LCD screens. Our extensive experience and dedication have allowed us to cater to a diverse range of industries, particularly focusing on industrial and medical applications. Whether you need compact screens as small as 0.5 inches or larger displays up to 88 inches, we have a broad selection to meet your requirements.

Our Product Range

We offer a comprehensive range of LCD screens from some of the most renowned and reliable brands in the industry. Our inventory includes:

Hitachi: Known for their durable and high-performance displays.

Samsung: Leading the market with cutting-edge technology and innovation.

Sharp: Renowned for their crystal-clear display quality and reliability.

NEC: A preferred choice for professional-grade monitors and displays.

Tianma: Recognized for their advanced industrial display solutions.

AUO: Providing a wide range of sizes and applications.

Fujitsu: Offering robust and efficient LCD solutions.

Kyocera: Known for their long-lasting and high-quality displays.

Technical Support

Beyond just providing screens, we also offer partial technical support to ensure that you can make the most out of your purchase. Our technical team is always ready to assist you with installation, troubleshooting, and any other technical queries you might have. We are committed to ensuring that our customers not only receive top-tier products but also the support they need to operate them efficiently.

M238HAN01.1 LCD Panel Shipping and Package :

M238HAN01.1 23.8 inch LCD Display Screen for Desktop Monitor 0

M238HAN01.1 LCD Screen Shipping Information:

Quality Assurance

Before shipping, we conduct rigorous testing on all our LCD screens to ensure they meet our high standards of quality and performance. This thorough testing process helps us guarantee that you receive a product that is in perfect working condition.

Shipping Timeline

Once your payment is confirmed, we will proceed with the shipping process. Typically, we ship orders within 1-3 working days. Please be assured that we prioritize efficiency and aim to get your order to you as quickly as possible.

Shipping Address

We ship orders according to the shipping address provided at the time of purchase. If you need to change the shipping address, please contact us promptly to update your information before we dispatch your order. It's crucial to inform us in advance to avoid any shipping delays or errors.

Estimated Delivery Time

The delivery time for your order may vary depending on your location. Generally, you can expect your package to arrive within 7-30 days. Delivery times can differ significantly between countries due to factors such as customs processing and local postal services.

M238HAN01.1 LCD Screen Returns Policy :

30-Day Money Back Guarantee

If you are not entirely satisfied with your LCD screen purchase, you can return it within 30 days of the purchase date for a full refund.

Return Process

Contact Us: To initiate a return, please contact our customer service team. Provide your purchasing information, including the order number and any other details that were sent to you at the time of purchase. This information helps us process your return efficiently.

Return Period: Ensure that your return is made within 30 days from the date of purchase. Returns made after this period may not be eligible for a refund.

Important Notes

The returned item must be in its original condition, including all accessories and packaging materials.

We recommend using a trackable shipping method for your return to ensure that it reaches us safely.

Once we receive and inspect the returned item, we will process your refund. Please allow a few business days for the refund to appear in your account.

M238HAN01.1 LCD Panel FAQ :

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Do you accept the sample order of M238HAN01.1 ?

A: Yes, Welcome !

Q: How long the warranty of M238HAN01.1 ?

A: 90 days .

Q: What happen if the M238HAN01.1 received can't work ?

A: Our M238HAN01.1 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
