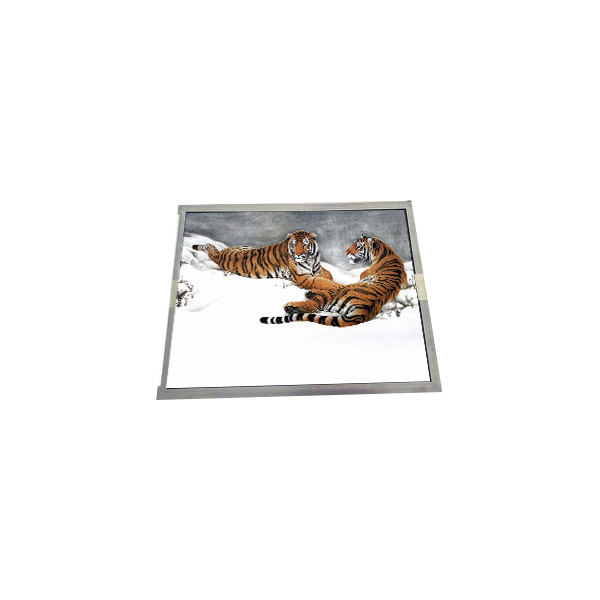

Original LQ150U1LH22 15.0 inch LCD Screen for Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ150U1LH22 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ150U1LH22 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1600(RGB)×1200, UXGA 133PPI |
| Pixel Format: | RGBW Vertical Stripe | Active Area: | 304(W)×228(H) Mm |
| Used For: | Laptop | Touch Panel: | Without |
Product Description
Original LQ150U1LH22 15.0 inch LCD Screen for Laptop
LQ150U1LH22 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ150U1LH22 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1600(RGB)×1200, UXGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304(W)×228(H) mm |
| Bezel Opening | 307.5(W)×231.5(H) mm |
| Outline Size | 317.3(W)×242(H)×10(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (2H), Antireflection |
| Brightness | 150 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (TM) |
| Viewing Angle | 45/45/10/30 (Min.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 15/30 (Typ.)(Tr/Td) |
| Display Colors | 262K |
| Lamp Type | 1 pcs CCFL, 10K hours, With Inverter |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
| Application | Laptop |
| Signal Interface | LVDS (2 ch, 6-bit), 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -25 ~ 60 °C |
| Original LQ150U1LH22 15.0 inch LCD Screen for Laptop | |
LQ150U1LH22 LCD Panel Shipping and Package :
LQ150U1LH22 LCD Panel FAQ :
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long is the warranty of LQ150U1LH22 ?
A: NEW Product warranty is 90 days.
Q: How to order lcd panel LQ150U1LH22 ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
