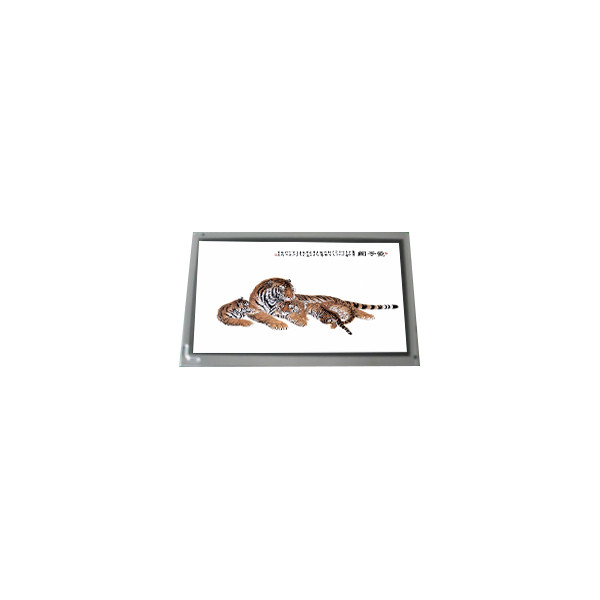

1600*1200 LQ150U1LG01 15.0 inch LVDS LCD Screen for Desktop Monitor

All Category

Floor Standing Digital Signage

1600*1200 LQ150U1LG01 15.0 inch LVDS LCD Screen for Desktop Monitor

Brand Name:	Sharp
Model Number:	LQ150U1LG01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ150U1LG01

Diagonal Size:

15.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1600(RGB)×1200, UXGA 133PPI

Pixel Format:

RGBW Vertical Stripe

Active Area:

304.8(W)×228.6(H) Mm

Used For:

Desktop Monitor

Touch Panel:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

1600*1200 LQ150U1LG01 15.0 inch LVDS LCD Screen for Desktop Monitor

LQ150U1LG01 LCD Panel Product details :

Brand	Sharp
Model P/N	LQ150U1LG01
Diagonal Size	15.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1600(RGB)×1200, UXGA 133PPI
Pixel Format	RGB Vertical Stripe
Active Area	304.8(W)×228.6(H) mm
Bezel Opening	308.0(W)×231.8(H) mm
Outline Dim.	340(W)×264(H)×19.5(D) mm
Luminance	200 cd/m² (Typ.)
View Direction	12 o'clock
Viewing Angle	70/70/70/40 (Typ.)(CR≥10)
Support Color	16.2M
Weight	1.40Kgs (Max.)
Frame Rate	-
Treatment	Antiglare (Haze 28%), Hard coating (2H)
Contrast Ratio	300:1 (Typ.) (TM)
Response Time	15/30 (Typ.)(Tr/Td)
Operating Mode	TN, Normally White, Transmissive
Light Source	CCFL [4 pcs] , 50K hours , W/O Driver
Designed For	Desktop Monitor
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit)40 pins Connector
Power Supply	12.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C; Storage Temperature: -25 ~ 60 °C
1600*1200 LQ150U1LG01 15.0 inch LVDS LCD Screen for Desktop Monitor

LQ150U1LG01 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

LQ150U1LG01 LCD Panel Shipping and Package :

1600*1200 LQ150U1LG01 15.0 inch LVDS LCD Screen for Desktop Monitor 0

LQ150U1LG01 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

LQ150U1LG01 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

LQ150U1LG01 LCD Panel FAQ :

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.

Q: How long is the warranty of LQ150U1LG01 ?

A: NEW Product warranty is 90 days.

Q: How to order lcd panel LQ150U1LG01 ?

A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
