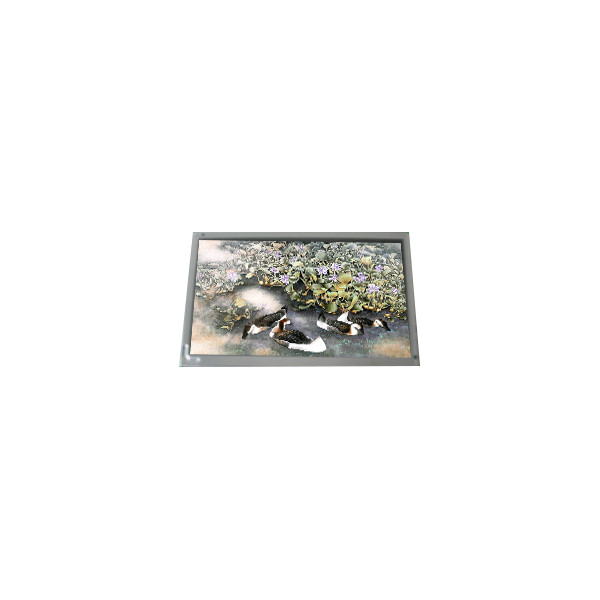

15.0 inch LQ150P1JX51 60 pins TFT LCD Screen for Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ150P1JX51 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ150P1JX51 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Panel Type: | Oxide TFT-LCD, LCM | Resolution: | 2496(RGB)×1664 199PPI |
| Pixel Format: | RGBW Vertical Stripe | Active Area: | 317.117(W)×211.411(H) Mm |
| Used For: | Laptop | Touch Panel: | Without |
Product Description
15.0 inch LQ150P1JX51 60 pins TFT LCD Screen for Laptop
LQ150P1JX51 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ150P1JX51 |
| Diagonal Size | 15.0" |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 2496(RGB)×1664 199PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 317.117(W)×211.411(H) mm |
| Bezel Opening | - |
| Outline Size | 323.32(W)×231.59(H)×2.4(D) mm |
| Treatment | Glare (Haze 0%) |
| Luminance | 510 cd/m² (Typ.) |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 25 (Max.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | New Mode2, Normally Black, Transmissive |
| Color Depth | 16.7M |
| Backlight | 8S8PWLED, 12K hours, No Driver |
| Outline Shape | - |
| Used for | Laptop |
| Refresh Rate | - |
| Touchscreen | Without |
| Signal Type | eDP (4 Lanes), 60 pinsConnector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 70 °C Operating Temp.: -5 ~ 55 °C |
| 15.0 inch LQ150P1JX51 60 pins TFT LCD Screen for Laptop | |
LQ150P1JX51 LCD Panel Shipping and Package :
LQ150P1JX51 LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
