Brand Name: | Sharp |
Model Number: | LQ141K1LB1C |
MOQ: | 1 pcs |
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Payment Terms: | T/T, Western Union |

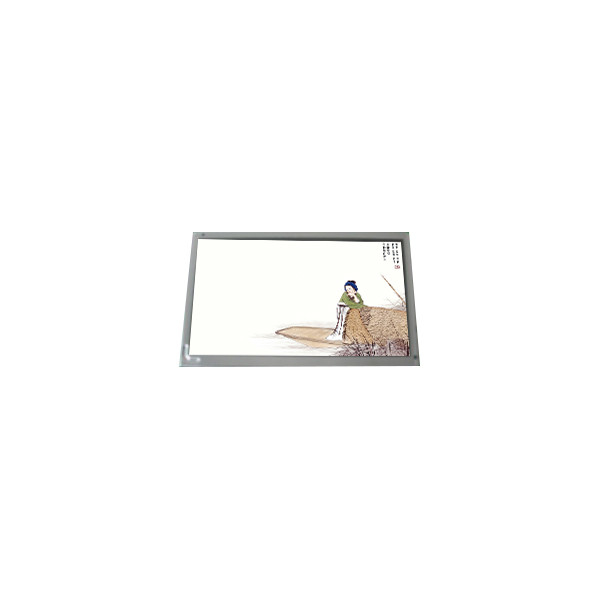

LQ141K1LB1C 1280*800 14.1 inch 262K CCFL LCD Screen
LQ141K1LB1C LCD Panel Product details :
Brand | Sharp |
Model P/N | LQ141K1LB1C |
Diagonal Size | 14.1" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1280(RGB)×800, WXGA 107PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 303.36(W)×189.6(H) mm |
Bezel Opening | - |
Outline (mm) | 319.5×205.5×5.5 (H×V×D) |
Treatment | Glare (Haze 0%), Hard coating (2H), Antireflection |
Luminance | 200 cd/m² (Typ.) |
Contrast Ratio | 300 : 1 (Typ.) (TM) |
Viewing Angle | 45/45/10/30 (Min.)(CR≥10) |
Response | 30 (Typ.)(Tr+Td) ms |
Good View at | 6 o'clock |
Work Mode | TN, Normally White, Transmissive |
Color Depth | 262K |
Backlight | 1 pcsCCFL, 12K hours, No Driver |
Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
Used for | Laptop |
Refresh Rate | 60Hz |
Touchscreen | Without |
Signal Type | LVDS (1 ch, 6-bit), Connector30 pins |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
LQ141K1LB1C 1280*800 14.1 inch 262K CCFL LCD Screen |
LQ141K1LB1C LCD Panel Shipping and Package :
LQ141K1LB1C LCD Panel FAQ :
Q: Can I pay my order of LQ141K1LB1C via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of LQ141K1LB1C to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of LQ141K1LB1C ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of LQ141K1LB1C ?
A: Of course!sample order is welcome !
