LCD Laptop Screen

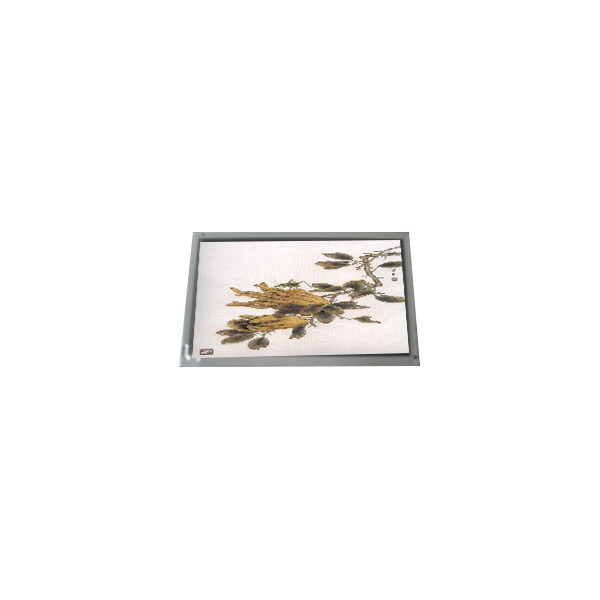

13.5 inch LQ135P1JX01 2256*1504 LCD Display Screen Panel

All Category

Floor Standing Digital Signage

13.5 inch LQ135P1JX01 2256*1504 LCD Display Screen Panel

Brand Name:	Sharp
Model Number:	LQ135P1JX01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ135P1JX01

Diagonal Size:

13.5"

Panel Type:

Oxide TFT-LCD, LCM

Resolution:

2256(RGB)×1504 200PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

285.271(W)×190.181(H) Mm

Touch Screen:

Without

Designed For:

Laptop

Supply Ability:

100000 Unit/Units per Month

Product Description

13.5 inch LQ135P1JX01 2256*1504 LCD Display Screen Panel

LQ135P1JX01 LCD Panel Product details :

Brand	Sharp
Model P/N	LQ135P1JX01
Diagonal Size	13.5"
Panel Type	Oxide TFT-LCD, LCM
Resolution	2256(RGB)×1504 200PPI
Pixel Format	RGB Vertical Stripe
Active Area	285.271(W)×190.181(H) mm
Bezel Opening	-
Outline Size	291.47(W)×210.36(H) mm
Brightness	520 cd/m² (Typ.)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	16.7M 100%sRGB
Frequency	-
Shape Style	Slim (PCBA Flat, T≤3.2mm)
Surface	Glare (Haze 0%)
Contrast Ratio	1500:1 (Typ.) (TM)
Display Mode	New Mode2, Normally Black, Transmissive
Response Time	25 (Max.)(Tr+Td)
Lamp Type	8S7P WLED , 12K hours , Without Driver
Touch Screen	Without
Application	Laptop
Signal Interface	eDP (4 Lanes), eDP1.4b , 4.32G/lane , 60 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -5 ~ 55 °C ;Storage Temp.: -30 ~ 70 °C
13.5 inch LQ135P1JX01 2256*1504 LCD Display Screen Panel

LQ135P1JX01 LCD Screen Regarding Us:

For over a decade, we have been a trusted name in the Chinese market, specializing in the sale of high-quality LCD screens. Our extensive experience and dedication have allowed us to cater to a diverse range of industries, particularly focusing on industrial and medical applications. Whether you need compact screens as small as 0.5 inches or larger displays up to 88 inches, we have a broad selection to meet your requirements.

Our Product Range

We offer a comprehensive range of LCD screens from some of the most renowned and reliable brands in the industry. Our inventory includes:

Hitachi: Known for their durable and high-performance displays.

Samsung: Leading the market with cutting-edge technology and innovation.

Sharp: Renowned for their crystal-clear display quality and reliability.

NEC: A preferred choice for professional-grade monitors and displays.

Tianma: Recognized for their advanced industrial display solutions.

AUO: Providing a wide range of sizes and applications.

Fujitsu: Offering robust and efficient LCD solutions.

Kyocera: Known for their long-lasting and high-quality displays.

Technical Support

Beyond just providing screens, we also offer partial technical support to ensure that you can make the most out of your purchase. Our technical team is always ready to assist you with installation, troubleshooting, and any other technical queries you might have. We are committed to ensuring that our customers not only receive top-tier products but also the support they need to operate them efficiently.

LQ135P1JX01 LCD Panel Shipping and Package :

13.5 inch LQ135P1JX01 2256*1504 LCD Display Screen Panel 0

LQ135P1JX01 LCD Screen Shipping Information:

Quality Assurance

Before shipping, we conduct rigorous testing on all our LCD screens to ensure they meet our high standards of quality and performance. This thorough testing process helps us guarantee that you receive a product that is in perfect working condition.

Shipping Timeline

Once your payment is confirmed, we will proceed with the shipping process. Typically, we ship orders within 1-3 working days. Please be assured that we prioritize efficiency and aim to get your order to you as quickly as possible.

Shipping Address

We ship orders according to the shipping address provided at the time of purchase. If you need to change the shipping address, please contact us promptly to update your information before we dispatch your order. It's crucial to inform us in advance to avoid any shipping delays or errors.

Estimated Delivery Time

The delivery time for your order may vary depending on your location. Generally, you can expect your package to arrive within 7-30 days. Delivery times can differ significantly between countries due to factors such as customs processing and local postal services.

LQ135P1JX01 LCD Screen Returns Policy :

30-Day Money Back Guarantee

If you are not entirely satisfied with your LCD screen purchase, you can return it within 30 days of the purchase date for a full refund.

Return Process

Contact Us: To initiate a return, please contact our customer service team. Provide your purchasing information, including the order number and any other details that were sent to you at the time of purchase. This information helps us process your return efficiently.

Return Period: Ensure that your return is made within 30 days from the date of purchase. Returns made after this period may not be eligible for a refund.

Important Notes

The returned item must be in its original condition, including all accessories and packaging materials.

We recommend using a trackable shipping method for your return to ensure that it reaches us safely.

Once we receive and inspect the returned item, we will process your refund. Please allow a few business days for the refund to appear in your account.

LQ135P1JX01 LCD Panel FAQ :

Q: How long is the warranty of LQ135P1JX01 ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of LQ135P1JX01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: If I order LQ135P1JX01 now,when will you ship the goods ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders for LQ135P1JX01 ?

A: Of course!sample order is welcome !
