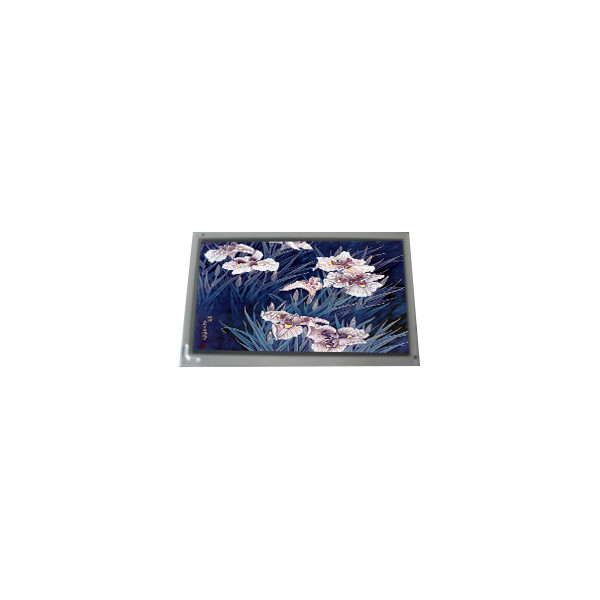

3840*2400 13.4 inch LQ134R1JW53 1000 : 1 LCD Panel Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ134R1JW53 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ134R1JW53 | Diagonal Size: | 13.4" |
|---|---|---|---|
| Panel Type: | Oxide TFT-LCD, LCM | Resolution: | 3840(RGB)×2400 338PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 288(W)×180(H) Mm |
| Used For: | Laptop | Frame Rate: | 60Hz |
Product Description
3840*2400 13.4 inch LQ134R1JW53 1000 : 1 LCD Panel Display Screen
LQ134R1JW53 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ134R1JW53 |
| Diagonal Size | 13.4" |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 3840(RGB)×2400 338PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 288(W)×180(H) mm |
| Bezel Opening | - |
| Luminance | - |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Refresh Rate | 60Hz |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Work Mode | New Mode2, Normally Black, Transmissive |
| Response | 30 (Typ.)(Tr+Td) ms |
| Backlight | WLED , 15K hours , With LED Driver |
| Used for | Laptop |
| Touchscreen | Without |
| Signal Type | eDP (4 Lanes), HBR2 (5.4G/lane), 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 3840*2400 13.4 inch LQ134R1JW53 1000 : 1 LCD Panel Display Screen | |
LQ134R1JW53 LCD Panel Shipping and Package :
LQ134R1JW53 LCD Panel FAQ :
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long is the warranty of LQ134R1JW53 ?
A: NEW Product warranty is 90 days.
Q: How to order lcd panel LQ134R1JW53 ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
