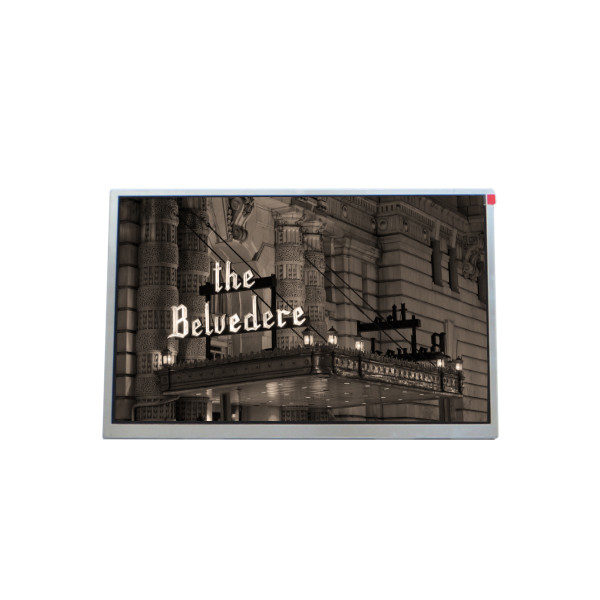

C050VVN01.2 5.0 inch lcd screen for Automotive Display

Brand Name:	AUO
Model Number:	C050VVN01.2
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

C050VVN01.2

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 187PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

108.6(W)×65.16(H) Mm

Work Mode:

AMVA, Normally Black, Transmissive

Light Source:

6S2P WLED , 10K Hours , Without Driver

View Direction:

Symmetry

Application:

Automotive Display

Supply Ability:

100000 Unit/Units per Month

Product Description

C050VVN01.2 5.0 inch lcd screen for Automotive Display

C050VVN01.2 LCD Panel Product details :

Brand	AUO
Model P/N	C050VVN01.2
Diagonal Size	5.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 187PPI
Pixel Format	RGB Vertical Stripe
Active Area	108.6(W)×65.16(H) mm
Bezel Opening	111.6(W)×68.56(H) mm
Outline Size	121.4(W)×80.3(H)×9.15(D) mm
Brightness	560 cd/m² (Min.)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	16.2M 57%NTSC
Frequency	60Hz
Weight	85.0g (Typ.)
Surface	Antiglare
Contrast Ratio	1000:1 (Min.) (TM)
Display Mode	AMVA, Normally Black, Transmissive
Response Time	15/30 (Max.)(Tr/Td)
Lamp Type	6S2P WLED , 10K hours , Without Driver
Touch Screen	Without
Application	Automotive Display
Signal Interface	Parallel RGB (1 ch, 8-bit), 60 pinsConnector
Input Voltage	3.3//12.5/15/-9V (Typ.)(VDD/AVDD/VGH/VGL)
Environment	Operating Temp.: -30 ~ 85 °C ;Storage Temp.: -40 ~ 95 °C; Vibration Level: 2.9G (28.4 m/s²)

C050VVN01.2 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

C050VVN01.2 LCD Panel Shipping and Package :

C050VVN01.2 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

C050VVN01.2 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

C050VVN01.2 LCD Panel FAQ :

Q: Can you test the lcd panel C050VVN01.2 before shipping ?

A: Yes , of course , don't worry , our item was tested ok before shipping .

Q: Do you accept the sample order C050VVN01.2 ?

A: Yes , sample order is welcome.

Q: Can you declared low value of my order C050VVN01.2 ?

A: Yes , we can , you can tell us before shipping .

Q: How long the warranty of lcd C050VVN01.2 ?

A: 90 days .
