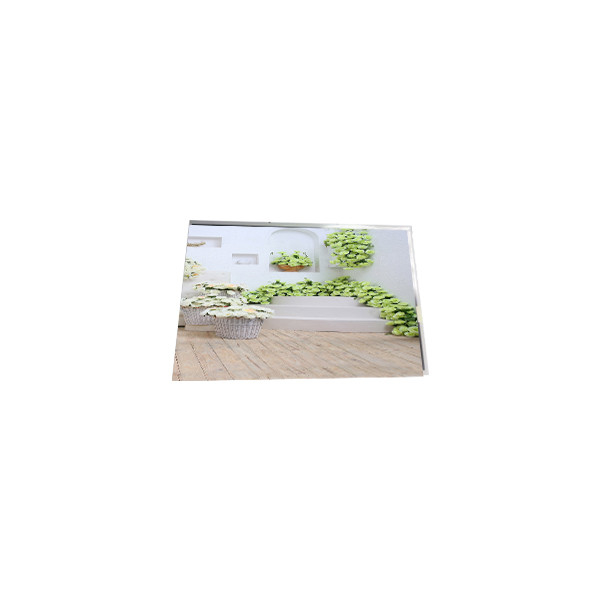

P0650VGF2MA20 6.5 inch 640*480 LCD Display Screen for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | P0650VGF2MA20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | P0650VGF2MA20 | Diagonal Size: | 6.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 640(RGB)×480, VGA 122PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 132.48(W)×99.36(H) Mm |
| Work Mode: | SFT, Normally Black, Transmissive | Light Source: | 9S6P WLED , 40K Hours , Without Driver |
| View Direction: | Symmetry | Application: | Industrial /Outdoor High Brightness |
Product Description
P0650VGF2MA20 6.5 inch 640*480 LCD Display Screen for Industrial
P0650VGF2MA20 LCD Panel Product details :
| Brand | TIANMA |
| Model P/N | P0650VGF2MA20 |
| Diagonal Size | 6.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480, VGA 122PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 132.48(W)×99.36(H) mm |
| Bezel Opening | 135.9(W)×102.8(H) mm |
| Outline Size | 153(W)×118(H) ×9.5(D) mm |
| Surface | Antiglare |
| Brightness | 900 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Display Mode | SFT, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 262K/16.7M 36% NTSC |
| Lamp Type | 9S6P WLED , 40K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 170g (Typ.) |
| Application | Industrial /Outdoor High Brightness |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
P0650VGF2MA20 Pre-Order Check:
Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.
Note:
Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!
P0650VGF2MA20 LCD Panel Shipping and Package :
P0650VGF2MA20 Shipping Information:
Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.
Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.
Shipments will be processed within 3 business days of receiving payment.
Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.
LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.
Attention to Russian Customers:
For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.
P0650VGF2MA20 About the Goods:
Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.
While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.
P0650VGF2MA20 LCD Panel FAQ :
Q: Can you tested the P0650VGF2MA20 before shipping ?
A: Of course , our lcd panel P0650VGF2MA20 was Strictly tested before shipping.
Q: How to order P0650VGF2MA20 ?
A: We accept T/T , Paypal , western union .
Q: How long the warranty of the lcd P0650VGF2MA20 ?
A: 90 days .
Q: What happen if the lcd panel P0650VGF2MA20 I received can't work ?
A: P0650VGF2MA20 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
