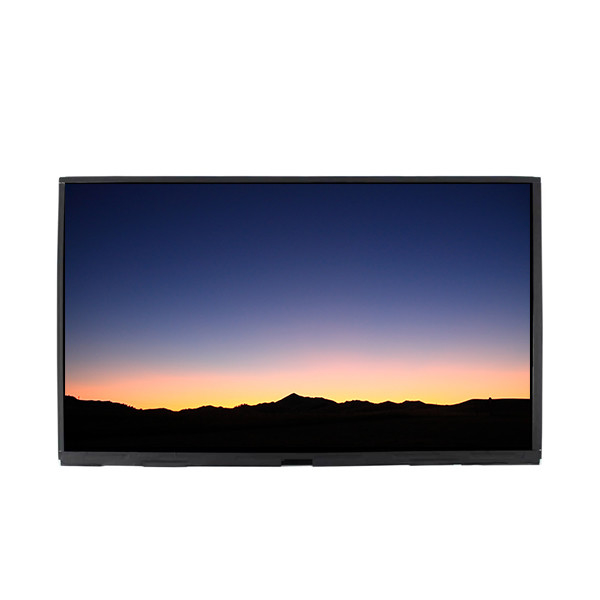

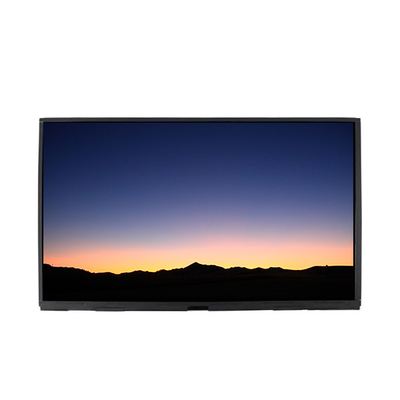

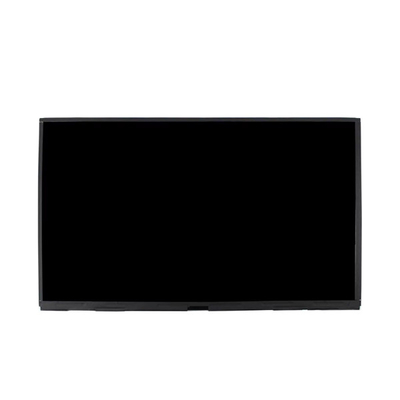

G156HAT01.4 15.6 inch 1080p LCD Display Screen for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G156HAT01.4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G156HAT01.4 | Diagonal Size: | 15.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 141PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 344.16(W)×193.59(H) Mm |
| Work Mode: | AHVA, Normally Black, Transmissive | Light Source: | WLED, 50K Hours |
| View Direction: | Symmetry | Application: | Industrial |
Product Description
G156HAT01.4 15.6 inch 1080p LCD Display Screen for Industrial
G156HAT01.4 LCD Panel Product details :
| Brand | AUO |
| Model P/N | G156HAT01.4 |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.16(W)×193.59(H) mm |
| Bezel Opening | - |
| Luminance | 420 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 16.7M 72%NTSC |
| Light Source | WLED, 50K hours |
| Weight | - |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | PCAP, Air Bonding |
| Interface Type | LVDS (2 ch, 8-bit)Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C - |
G156HAT01.4 Pre-Order Check:
G156HAT01.4 LCD Panel Shipping and Package :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel G156HAT01.4 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
