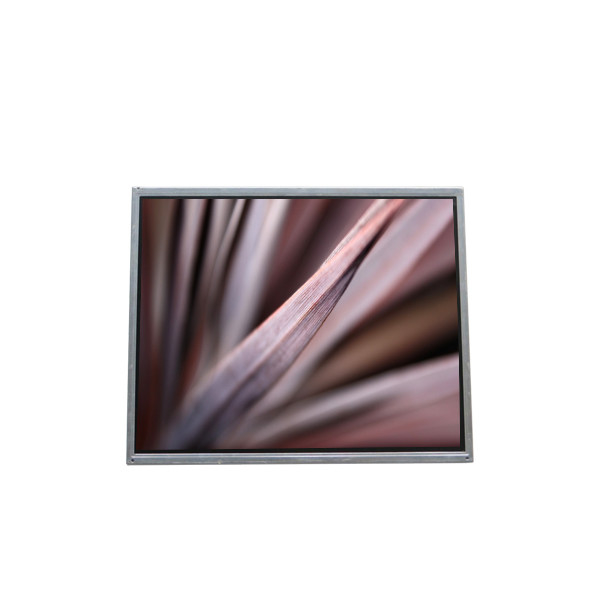

M170EN04-1 NEW 17.0 inch 1280*1024 LCD Display Screen

Brand Name:	AUO
Model Number:	M170EN04-1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M170EN04-1

Diagonal Size:

17.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)×1024, SXGA 96PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

337.92(W)×270.336(H) Mm

Work Mode:

TN, Normally White, Transmissive

Light Source:

4 PcsCCFL, 50K Hours, Without Driver

Viewing Angle:

75/75/70/70 (Typ.)(CR≥10)

Application:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

M170EN04-1 NEW 17.0 inch 1280*1024 LCD Display Screen

M170EN04-1 LCD Panel Product details :

Brand	ACER
Model P/N	M170EN04-1
Diagonal Size	17.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×1024, SXGA 96PPI
Pixel Format	RGB Vertical Stripe
Active Area	337.92(W)×270.336(H) mm
Bezel Opening	342.0(W)×274.5(H) mm
Outline Size	383.5(W)×306(H)×20(D) mm
Surface	-
Brightness	250 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
Viewing Angle	75/75/70/70 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	-
Response Time	30/15 (Typ.)(Tr/Td)
Display Colors	16.7M 65%NTSC
Lamp Type	4 pcsCCFL, 50K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	2.00Kgs (Typ.)
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 30 pinsConnector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

M170EN04-1 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

M170EN04-1 LCD Panel Shipping and Package :

M170EN04-1 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

M170EN04-1 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

M170EN04-1 LCD Panel FAQ :

Q: Can You declare my order of M170EN04-1 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of M170EN04-1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of M170EN04-1 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How long will I receive my goods M170EN04-1 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
