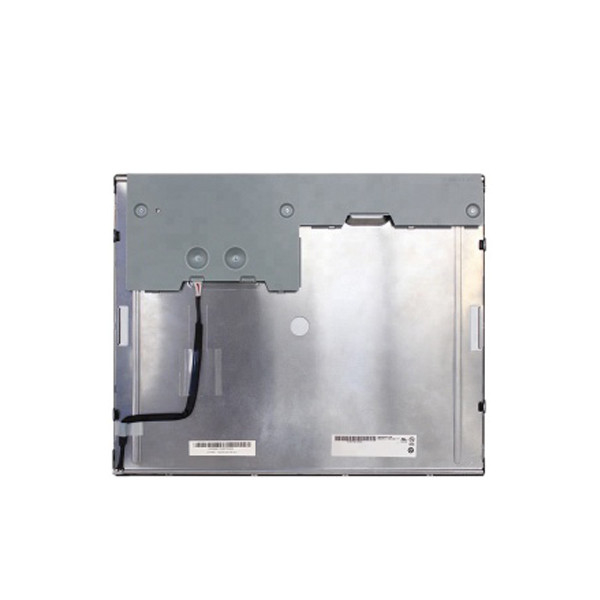

19.0 inch G190EG02 V1 Medical lcd display new original

Brand Name:	AUO
Model Number:	G190EG02 V1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

G190EG02 V1

Diagonal Size:

19.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)×1024, SXGA 86PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

376.32(W)×301.056(H) Mm

Work Mode:

MVA, Normally Black, Transmissive

Light Source:

WLED, 50K Hours , With LED Driver

View Direction:

Symmetry

Application:

Industrial、Medical Imaging

Supply Ability:

100000 Unit/Units per Month

Product Description

19.0 inch G190EG02 V1 Medical lcd display new original

G190EG02 V1 LCD Panel Product details :

Brand	AUO
Model P/N	G190EG02 V1
Diagonal Size	19.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×1024, SXGA 86PPI
Pixel Format	RGB Vertical Stripe
Active Area	376.32(W)×301.056(H) mm
Bezel Opening	380.32(W)×305.06(H) mm
Outline Dim.	396(W)×324(H)×18.9(D) mm
Luminance	300 cd/m² (Typ.)
View Direction	Symmetry
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Support Color	16.7M 70% NTSC
Weight	1.75Kgs (Typ.)
Frame Rate	60Hz
Treatment	Antiglare
Contrast Ratio	2000:1 (Typ.) (TM)
Response Time	15/5 (Typ.)(Tr/Td)
Operating Mode	MVA, Normally Black, Transmissive
Light Source	WLED, 50K hours , With LED Driver
Designed For	Industrial,Medical Imaging
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit)30 pins Connector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 60 °C; Storage Temperature: -20 ~ 60 °C

G190EG02 V1 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

G190EG02 V1 LCD Panel Shipping and Package :

G190EG02 V1 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

G190EG02 V1 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

G190EG02 V1 LCD Panel FAQ :

Q: Do you accept sample orders of G190EG02 V1 ?

A: Of course! Sample order is welcome.

Q: Can I pay my order of G190EG02 V1 vai credit card?

A: Yes! You can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90 days warranty.

Q: If I place order now, when will you ship the goods of G190EG02 V1 ?

A: The order will be shipped within 2-3 working days after received your payment.
