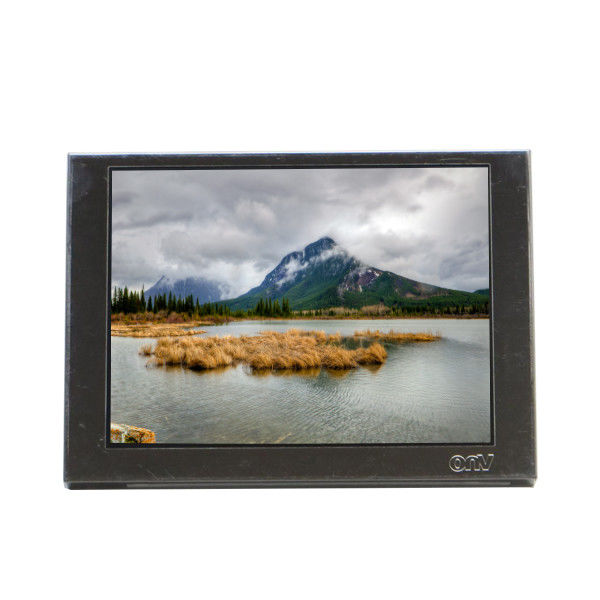

G057QN01 V1 5.7 inch 320*240 LCD Display Panel For Industrial

Brand Name:	AUO
Model Number:	G057QN01 V1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

G057QN01 V1

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

320(RGB)×240, QVGA 70PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

115.2(W)×86.4(H) Mm

Work Mode:

TN, Normally White, Transmissive

Light Source:

WLED, 50K Hours, With LED Driver

View Direction:

12 O'clock

Application:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

G057QN01 V1 5.7 inch 320*240 LCD Display Panel For Industrial

G057QN01 V1 LCD Panel Product details :

Brand	AUO
Model P/N	G057QN01 V1
Diagonal Size	5.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	320(RGB)×240, QVGA 70PPI
Pixel Format	RGB Vertical Stripe
Active Area	115.2(W)×86.4(H) mm
Bezel Opening	118.2(W)×89.4(H) mm
Outline Size	144(W)×104.6(H)×12.8(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	800 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
Viewing Angle	80/80/70/70 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	12 o'clock
Response Time	15/10 (Typ.)(Tr/Td)
Display Colors	262K 50%NTSC
Lamp Type	WLED, 50K hours, With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	160/175g (Typ./Max.)
Application	Industrial
Signal Interface	CMOS (1 ch, 6-bit), 33 pins Connector
Input Voltage	3.3V (Typ.)(VDD)
Environment	Operating Temp.: -30 ~ 85 °C ;Storage Temp.: -30 ~ 85 °C

G057QN01 V1 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

G057QN01 V1 LCD Panel Shipping and Package :

G057QN01 V1 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

G057QN01 V1 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

G057QN01 V1 LCD Panel FAQ :

Q: When will my order 5.7 inch lcd panel G057QN01 V1 ship?

A: The order are shipped within 1-2 working days after received the payment.

Q: Can you test 5.7 inch lcd panel G057QN01 V1 before shipping?

A: Don't Worry , The G057QN01 V1 was tested ok before shipping.

Q: What happen if G057QN01 V1 I received can't work ?

A: The G057QN01 V1 will be tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
