LCD Screen Display Panel

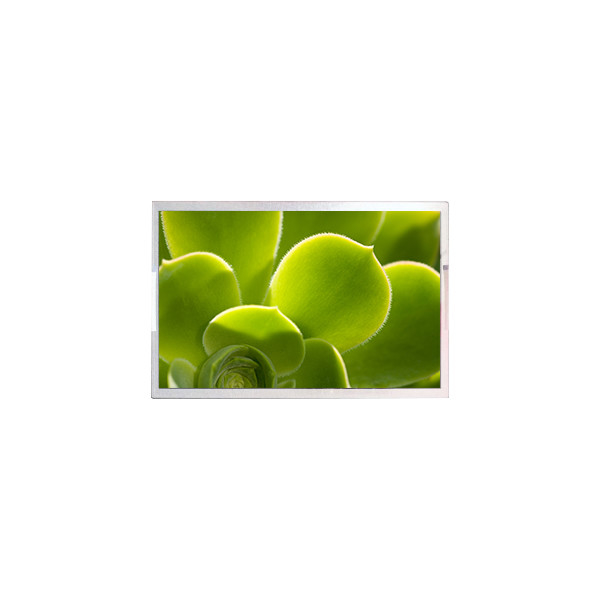

SN238CS03-5 23.8 inch LCD Screen Display Panel

All Category

Floor Standing Digital Signage

Multi Touch Screen Panel

chance

info@yongs-hk.com

86-18575563918

Contact Now

SN238CS03-5 23.8 inch LCD Screen Display Panel

Brand Name:	HKC
Model Number:	SN238CS03-5
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

SN238CS03-5

Diagonal Size:

23.8"

Panel Type:

A-Si TFT-LCD, CELL , FOB

Resolution:

1920(RGB)×1080, FHD 92PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

527.04(W)×296.46(H) Mm

Work Mode:

HIS, Normally Black, Transmissive

Light Source:

No B/L

View Direction:

Symmetry

Application:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

SN238CS03-5 23.8 inch LCD Screen Display Panel

SN238CS03-5 LCD Panel Product details :

Brand	HKC
Model P/N	SN238CS03-5
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, CELL , FOB
Resolution	1920(RGB)×1080, FHD 92PPI
Pixel Format	RGB Vertical Stripe
Active Area	527.04(W)×296.46(H) mm
Bezel Opening	-
Outline Dim.	534.64(W)×308.06(H)×1.17(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	1000 : 1 (Typ.) (TM)
View Direction	Symmetry
Response Time	14 (Typ.)(G to G) ms
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	HIS, Normally Black, Transmissive
Glass Thickness	0.40+0.40 mm
Transmissivity	5.1% (Typ.)(with Polarizer)
Support Color	16.7M 72% NTSC
Light Source	No B/L
Weight	435g (Typ.)
Designed For	Desktop Monitor
Frame Rate	120Hz
Touch Panel	Without
Driver IC list	Built-in COF 6 source chips
Interface Type	LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply	12V (Typ.)
Environment	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

SN238CS03-5 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

SN238CS03-5 LCD Panel Shipping and Package :

SN238CS03-5 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

SN238CS03-5 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

SN238CS03-5 LCD Panel FAQ :

Q: Do you accept sample orders of SN238CS03-5 ?

A: Of course! Sample order is welcome.

Q: Can I pay my order of SN238CS03-5 vai credit card?

A: Yes! You can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90 days warranty.

Q: If I place order now, when will you ship the goods of SN238CS03-5 ?

A: The order will be shipped within 2-3 working days after received your payment.
