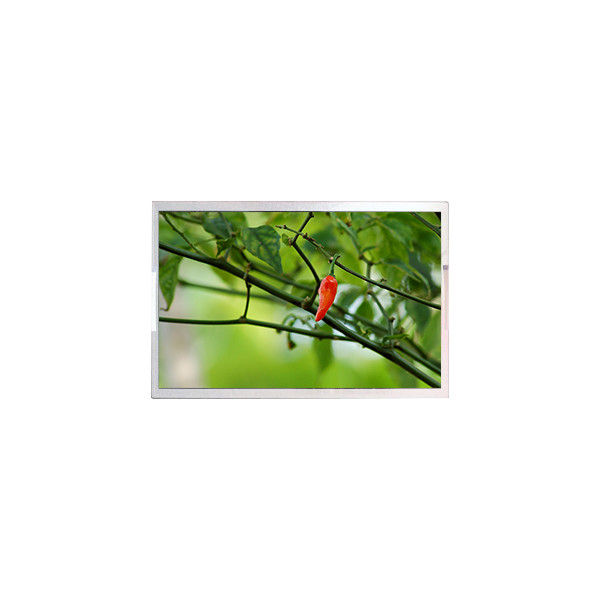

ZD070VA-01A 7.0 inch 1200*1920 LCD Screen Display

Brand Name:	Innolux
Model Number:	ZD070VA-01A
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

ZD070VA-01A

Diagonal Size:

Panel Type:

LTPS TFT-LCD, LCM

Resolution:

1200(RGB)×1920, WUXGA 322PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

151.2(W)×94.5(H) Mm

Work Mode:

AAS, Normally Black, Transmissive

Light Source:

Mini LED , 15K Hours , No Driver

View Direction:

Symmetry

Application:

Industrial /Outdoor High Brightness

Supply Ability:

100000 Unit/Units per Month

Product Description

ZD070VA-01A 7.0 inch 1200*1920 LCD Screen Display

ZD070VA-01A LCD Panel Product details :

Brand	Innolux
Model P/N	ZD070VA-01A
Diagonal Size	7.0"
Panel Type	LTPS TFT-LCD, LCM
Resolution	1200(RGB)×1920, WUXGA 322PPI
Pixel Format	RGB Vertical Stripe
Active Area	151.2(W)×94.5(H) mm
Bezel Opening	-
Outline Dim.	174.2(W)×107.5(H)×5.63(D)
Treatment	Anti Fingerprint, Hard coating (7H)
Luminance	2000 (Typ.)(cd/m²)
Contrast Ratio	40000 : 1 (Min.) (TM)
View Direction	Symmetry
Response Time	TBD ms
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Operating Mode	AAS, Normally Black, Transmissive
Support Color	16.7M 90% NTSC
Light Source	Mini LED , 15K hours , No Driver
Weight	124g (Max.)
Designed For	Industrial /Outdoor High Brightness
Frame Rate	60Hz
Touch Panel	In-Cell Touch, I²C
Interface Type	MIPI (4 data lanes) , 51 pins Connector
Power Supply	6.0/6.6/6.85V (Min./Typ./Max.)
Environment	Storage Temp.: -20 ~ 60 °C Operating Temp.: -20 ~ 50 °C

ZD070VA-01A Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

ZD070VA-01A LCD Panel Shipping and Package :

ZD070VA-01A Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

ZD070VA-01A About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

ZD070VA-01A LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of ZD070VA-01A ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of ZD070VA-01A ?

A: we will give you tracking number then you can trace your order from website.

Q: How to make payment of ZD070VA-01A ?

A: We accept T/T , Paypal , western union .

Q: Do you accept sample orders of ZD070VA-01A ?

A: Of course!sample order is welcome !
