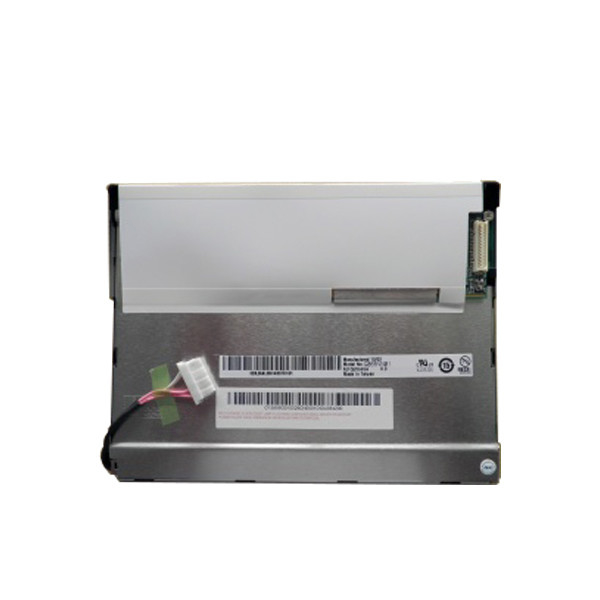

G065VN01 V0 6.5 inch tft original lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G065VN01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G065VN01 V0 | Diagonal Size: | 6.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 640(RGB)×480, VGA 122PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 132.48(W)×99.36(H) Mm |
| Work Mode: | TN, Normally White, Transmissive | Light Source: | CCFL [2 Pcs], 50K Hours, W/O Driver |
| View Direction: | 6 O'clock | Application: | Industrial |
Product Description
G065VN01 V0 6.5 inch tft original lcd screen
G065VN01 V0 LCD Panel Product details :
| Brand | AUO |
| Model P/N | G065VN01 V0 |
| Diagonal Size | 6.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480, VGA 122PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 132.48(W)×99.36(H) mm |
| Bezel Opening | 135.9(W)×102.8(H) mm |
| Outline Dim. | 153(W)×118(H)×11.2(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 15/10 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K/16.2M 55%NTSC |
| Light Source | CCFL [2 pcs], 50K hours, W/O Driver |
| Weight | 200g (Typ.) |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6/8-bit), 31 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C |
G065VN01 V0 Pre-Order Check:
Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.
Note:
Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!
G065VN01 V0 LCD Panel Shipping and Package :
G065VN01 V0 Shipping Information:
Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.
Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.
Shipments will be processed within 3 business days of receiving payment.
Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.
LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.
Attention to Russian Customers:
For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.
G065VN01 V0 About the Goods:
Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.
While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.
G065VN01 V0 LCD Panel FAQ :
Q: Can You declare my order of G065VN01 V0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: If I place order now,when will you ship the goods of G065VN01 V0 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of G065VN01 V0 via credit card ?
A:Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
Want to Know more details about this product
