LCD Screen Display Panel

M320DAN02.2 32.0 inch 2K LCD Screen Display

All Category

Floor Standing Digital Signage

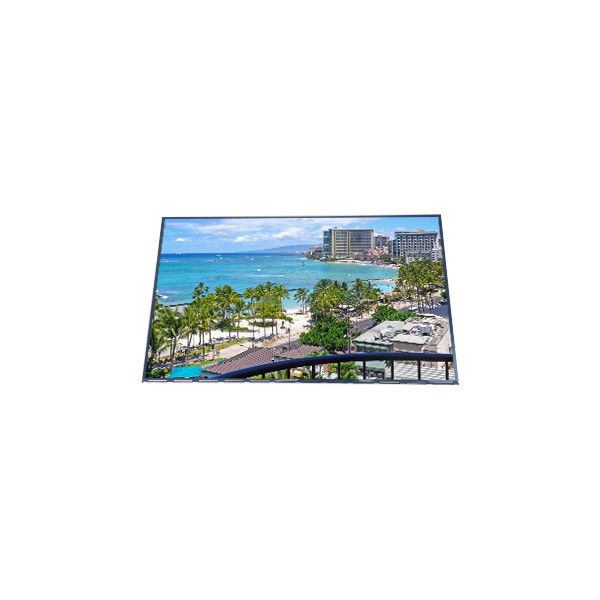

M320DAN02.2 32.0 inch 2K LCD Screen Display

Brand Name:	AUO
Model Number:	M320DAN02.2
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M320DAN02.2

Diagonal Size:

32.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

2560(RGB)×1440, Quad-HD 91PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

708.48(W)×398.52(H) Mm

Operating Mode:

AHVA, Normally Black, Transmissive

Light Source:

QLED [8S8P×2CN], 30K Hours, W/O Driver

View Direction:

Symmetry

Application:

Desktop Monitor、Gaming

Supply Ability:

100000 Unit/Units per Month

Product Description

M320DAN02.2 32.0 inch 2K LCD Screen Display

M320DAN02.2 LCD Panel Product details :

Brand	AUO
Model P/N	M320DAN02.2
Diagonal Size	32.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	2560(RGB)×1440, Quad-HD 91PPI
Pixel Format	RGB Vertical Stripe
Active Area	708.48(W)×398.52(H) mm
Bezel Opening	-
Outline Dim.	721.68(H)×417.9(V)×17.57(D) mm
Treatment	-
Luminance	400 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	5 (Typ.)(G to G)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	AHVA, Normally Black, Transmissive
Support Color	16.7M 100%Adobe RGB
Light Source	QLED [8S8P×2CN], 30K hours, W/O Driver
Weight	3.90/4.10Kgs (Typ./Max.)
Designed For	Desktop Monitor,Gaming
Frame Rate	165Hz
Touch Panel	Without
Interface Type	eDP (4 Lanes) , HBR2 (5.4G/lane) , 51 pinsConnector
Power Supply	12.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

M320DAN02.2 Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

M320DAN02.2 LCD Panel Shipping and Package :

M320DAN02.2 Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

M320DAN02.2 About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

M320DAN02.2 LCD Panel FAQ :

Q: Can you test the lcd panel M320DAN02.2 before shipping ?

A: Yes , of course , don't worry , our item was tested ok before shipping .

Q: Do you accept the sample order M320DAN02.2 ?

A: Yes , sample order is welcome.

Q: Can you declared low value of my order M320DAN02.2 ?

A: Yes , we can , you can tell us before shipping .

Q: How long the warranty of lcd M320DAN02.2 ?

A: 90 days .
