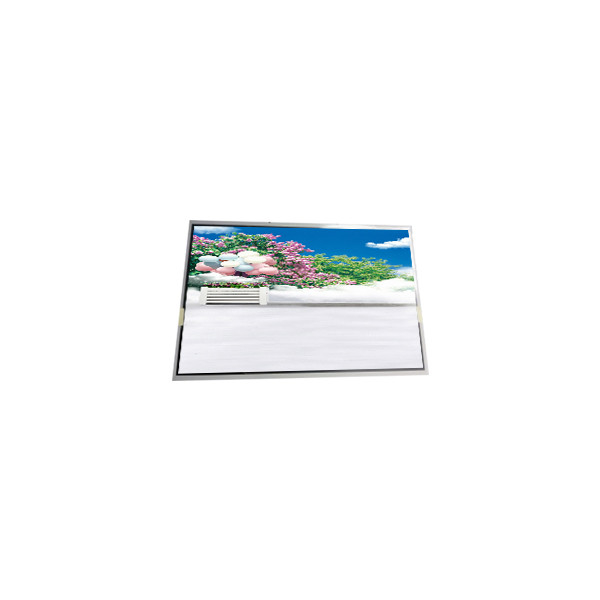

P1280FHF1MAAA Original 12.8 inch 1920*1080 LCD Screen Display

Brand Name:	TIANMA
Model Number:	P1280FHF1MAAA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

P1280FHF1MAAA

Diagonal Size:

12.8"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 172PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

283.392(W)×159.408(H) Mm

Operating Mode:

SFT, Normally Black, Transmissive

Light Source:

9S4P WLED , 50K Hours , Without Driver

View Direction:

Symmetry

Application:

Industrial /Outdoor High Brightness /Automotive Display

Supply Ability:

100000 Unit/Units per Month

Product Description

P1280FHF1MAAA Original 12.8 inch 1920*1080 LCD Screen Display

P1280FHF1MAAA LCD Panel Product details :

Brand	TIANMA
Model P/N	P1280FHF1MAAA
Diagonal Size	12.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 172PPI
Pixel Format	RGB Vertical Stripe
Active Area	283.392(W)×159.408(H) mm
Bezel Opening	284.392(W)×160.408(H) mm
Outline Size	292.69(W)×171.21(H) mm
Surface	Hard coating
Brightness	800 cd/m² (Typ.)
Contrast Ratio	1400:1 (Typ.) (TM)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Display Mode	SFT, Normally Black, Transmissive
Best View on	Symmetry
Response Time	30 (Max.)(Tr+Td)
Display Colors	16.7M 73% NTSC
Lamp Type	9S4P WLED , 50K hours , Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	447g (Typ.)
Application	Industrial /Outdoor High Brightness /Automotive Display
Signal Interface	LVDS (2 ch, 8-bit) , 60 pins FPC
Input Voltage	3.3/13/23/-8V (Typ.)(VCC/AVDD/VGH/VGL)
Environment	Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 3.0G (29.4 m/s²)

P1280FHF1MAAA Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

P1280FHF1MAAA LCD Panel Shipping and Package :

P1280FHF1MAAA Shipping Information:

Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.

Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.

Shipments will be processed within 3 business days of receiving payment.

Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.

LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.

Attention to Russian Customers:

For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.

P1280FHF1MAAA About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

P1280FHF1MAAA LCD Panel FAQ :

Q: Can you tested the P1280FHF1MAAA before shipping ?

A: Of course , our lcd panel P1280FHF1MAAA was Strictly tested before shipping.

Q: How to order P1280FHF1MAAA ?

A: We accept T/T , Paypal , western union .

Q: What happen if the lcd panel P1280FHF1MAAA received can't work ?

A:P1280FHF1MAAA was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
