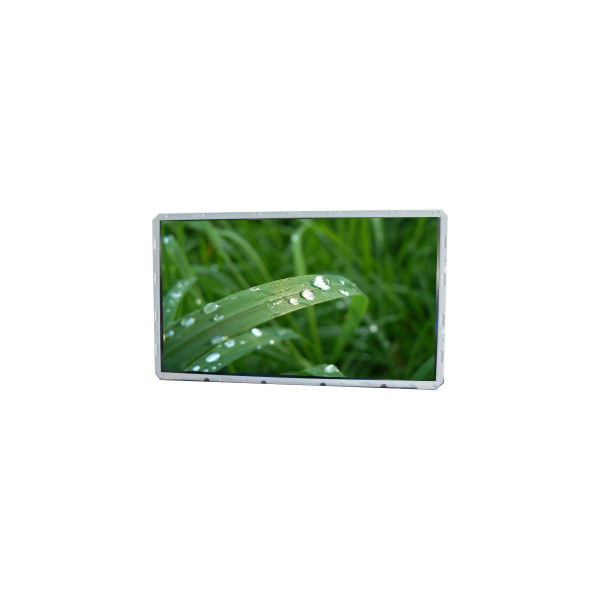

X546DLT01 5.5 inch 1080*1920 LCD Display Screen for Mobile Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | X546DLT01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | X546DLT01 | Diagonal Size: | 5.5" |
|---|---|---|---|
| Panel Type: | AM-OLED, OLED, Full Module | Resolution: | 1080(RGB)×1920, FHD 403PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 68.04(W)×120.96(H) Mm |
| Support Color: | 16.7M 100% NTSC | Response Time: | 0.6(Typ.)(Tr+Tf) |
| Light Source: | Self | Application: | Mobile Phone |
Product Description
X546DLT01 5.5 inch 1080*1920 LCD Display Screen for Mobile Phone
X546DLT01 LCD Panel Product details :
| Brand | AUO |
| Model P/N | X546DLT01 |
| Diagonal Size | 5.5" |
| Panel Type | AM-OLED, OLED, Full Module |
| Resolution | 1080(RGB)×1920, FHD 403PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 68.04(W)×120.96(H) mm |
| Bezel Opening | - |
| Outline Dim. | 70.84(W)×128.01(H) mm |
| Luminance | 300 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥1600) |
| Support Color | 16.7M 100% NTSC |
| Weight | 18.3±5.0g |
| Frame Rate | - |
| Treatment | Hard coating (3H) |
| Contrast Ratio | 10000:1 (Min.) (TM) |
| Response Time | 0.6(Typ.)(Tr+Tf) |
| Operating Mode | - |
| Light Source | self |
| Designed For | Mobile Phone |
| Touch Panel | On-Cell Touch, I²C |
| Interface Type | MIPI (4 data lanes)40 pins Connector |
| Power Supply | 1.8/3.1/3.8V (Typ.)(VDDI/VCI/VBAT) |
| Environment | Operating Temperature: -40 ~ 85 °C; Storage Temperature: -55 ~ 125 °C |
X546DLT01 Pre-Order Check:
Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.
Note:
Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!
X546DLT01 LCD Panel Shipping and Package :
X546DLT01 Shipping Information:
Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.
Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.
Shipments will be processed within 3 business days of receiving payment.
Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.
LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.
Attention to Russian Customers:
For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.
X546DLT01 About the Goods:
Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.
While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.
X546DLT01 LCD Panel FAQ :
Q: Can you tested the X546DLT01 before shipping ?
A: Of course , our lcd panel X546DLT01 was Strictly tested before shipping.
Q: How to order X546DLT01 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel X546DLT01 received can't work ?
A:X546DLT01 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
