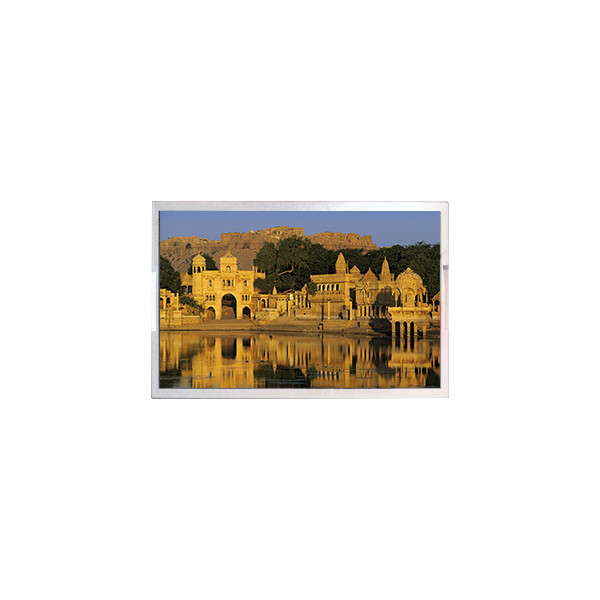

UV215FHM-N11 21.5 inch tft LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | UV215FHM-N11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | UV215FHM-N11 | Diagonal Size: | 21.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 102PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 476.64(W)×268.11(H) Mm |
| Operating Mode: | ADS, Normally Black, Transmissive | Light Source: | 17S4P WLED , 30K Hours , No Driver |
| View Direction: | Symmetry | Application: | Digital Signage |
Product Description
UV215FHM-N11 21.5 inch tft LCD Display Screen
UV215FHM-N11 LCD Panel Product details :
| Brand | BOE |
| Model P/N | UV215FHM-N11 |
| Diagonal Size | 21.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 102PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 476.64(W)×268.11(H) mm |
| Bezel Opening | 479.8(W)×271.3(H) mm |
| Outline Dim. | 495.6×292.2×11.6 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 550 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 17 (Typ.)(G to G) ms |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | 17S4P WLED , 30K hours , No Driver |
| Weight | 1.93Kgs (Typ.) |
| Designed For | Digital Signage |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , Connector 30 pins |
| Power Supply | 5.0V (Typ.) |
| Environment | Storage Temp.: -30 ~ 85 °C Operating Temp.: -20 ~ 80 °C |
UV215FHM-N11 Pre-Order Check:
Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.
Note:
Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!
UV215FHM-N11 LCD Panel Shipping and Package :
UV215FHM-N11 Shipping Information:
Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.
Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.
Shipments will be processed within 3 business days of receiving payment.
Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.
LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.
Attention to Russian Customers:
For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.
UV215FHM-N11 About the Goods:
Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.
While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.
UV215FHM-N11 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods UV215FHM-N11 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can you give me a discount if I need a large quantity UV215FHM-N11 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods UV215FHM-N11 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment UV215FHM-N11 ?
A: We accept T/T , Paypal , western union .
