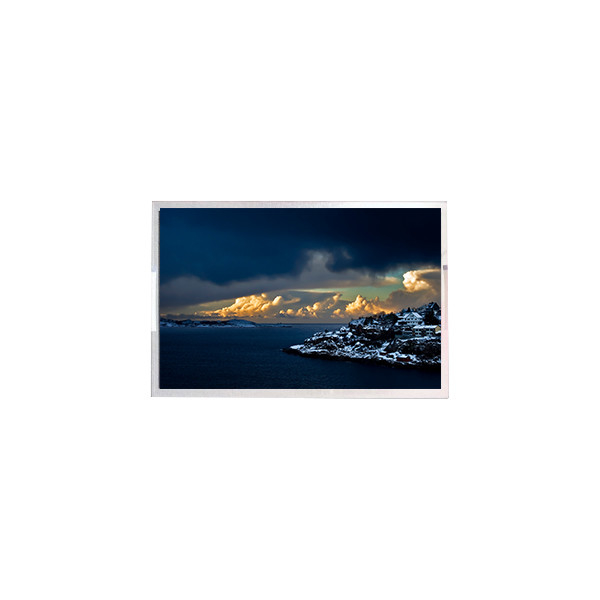

AV069Y0M-N11-DQP0 6.8 inch LCD screen LCD Display for Stretched Bar LCD
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | AV069Y0M-N11-DQP0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AV069Y0M-N11-DQP0 | Diagonal Size: | 6.8" (Native Bar) |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 480(RGB)×1280 202PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 60.2208(W)×160.589(H) Mm |
| Operating Mode: | ADS, Normally Black, Transmissive | Support Color: | 16.7M 70% NTSC |
| View Direction: | Symmetry | Application: | Stretched Bar LCD /Automotive Display /Home Appliance |
Product Description
AV069Y0M-N11-DQP0 6.8 inch LCD screen LCD Display for Stretched Bar LCD
AV069Y0M-N11-DQP0 LCD Panel Product details :
| Brand | BOE |
| Model P/N | AV069Y0M-N11-DQP0 |
| Diagonal Size | 6.8" (Native bar) |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 480(RGB)×1280 202PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 60.2208(W)×160.589(H) mm |
| Bezel Opening | 62.02(W)×162.39(H) mm |
| Outline Dim. | 66.8(W)×181.2(H)×7.15(D) |
| Treatment | - |
| Luminance | 480 (Typ.)(cd/m²) |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) ms |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 70% NTSC |
| Light Source | 3S4P WLED , 50K hours , No Driver |
| Weight | 98.7g (Typ.) |
| Designed For | Stretched Bar LCD /Automotive Display /Home Appliance |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | MIPI (4 data lanes) , 40 pins Connector |
| Power Supply | 1.8/3.3/5.5/-5.5V (Typ.)(IOVCC/VCC/VSP/VSN) |
| Environment | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
AV069Y0M-N11-DQP0 Pre-Order Check:
Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.
Note:
Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!
AV069Y0M-N11-DQP0 LCD Panel Shipping and Package :
AV069Y0M-N11-DQP0 Shipping Information:
Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.
Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.
Shipments will be processed within 3 business days of receiving payment.
Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.
LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.
Attention to Russian Customers:
For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.
AV069Y0M-N11-DQP0 About the Goods:
Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.
While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.
AV069Y0M-N11-DQP0 LCD Panel FAQ :
Q: Can You declare my order of AV069Y0M-N11-DQP0 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of AV069Y0M-N11-DQP0 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of AV069Y0M-N11-DQP0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I order AV069Y0M-N11-DQP0 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
