LCD Laptop Screen

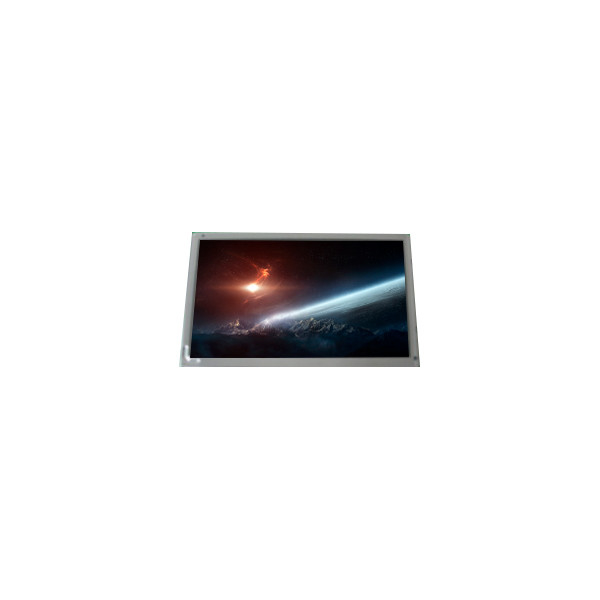

LQ120N1JX01 12.0 inch LCD Screen for Outdoor High Brightness

All Category

Floor Standing Digital Signage

LQ120N1JX01 12.0 inch LCD Screen for Outdoor High Brightness

Brand Name:	Sharp
Model Number:	LQ120N1JX01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ120N1JX01

Diagonal Size:

12.0"

Panel Type:

Oxide TFT-LCD, LCM

Resolution:

1920(RGB)×1200, WUXGA 188PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

259.2(W)×162(H) Mm

Designed For:

Laptop、Outdoor High Brightness

Touch Panel:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

LQ120N1JX01 12.0 inch LCD Screen for Outdoor High Brightness

LQ120N1JX01 LCD Panel Product details :

Brand	Sharp
Model P/N	LQ120N1JX01
Diagonal Size	12.0"
Panel Type	Oxide TFT-LCD, LCM
Resolution	1920(RGB)×1200, WUXGA 188PPI
Pixel Format	RGB Vertical Stripe
Active Area	259.2(W)×162(H) mm
Bezel Opening	-
Outline Size	264.2(W)×171.5(H) mm
Brightness	1350 cd/m² (Typ.)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	16.7M 100%sRGB
Frequency	-
Shape Style	Slim (PCBA Bent, T≤3.0mm)
Surface	Glare (Haze 0%), Hard coating (3H)
Contrast Ratio	1500:1 (Typ.) (TM)
Display Mode	New Mode2, Normally Black, Transmissive
Response Time	30 (Typ.)(Tr+Td)
Lamp Type	WLED , 15K hours , With LED Driver
Touch Screen	Without
Application	Laptop,Outdoor High Brightness
Signal Interface	eDP (2 Lanes), eDP1.4b , HBR1 (2.7G/lane) , 30 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -25 ~ 60 °C
LQ120N1JX01 12.0 inch LCD Screen for Outdoor High Brightness

LQ120N1JX01 LCD Panel Payment Instructions :

Accepted Payment Methods:

We prioritize the safety and convenience of our customers by accepting payments through Escrow, which allows you to pay securely online using your Credit Card.

Payment Timeline:

To ensure the timely processing and shipping of your order, please make your payment within 3 days of placing the order. Prompt payment is appreciated and helps us maintain efficient service. If you encounter any issues or delays with your payment, please don't hesitate to contact us immediately. We are here to assist you and resolve any problems to ensure a smooth transaction.

LQ120N1JX01 LCD Panel Shipping and Package :

LQ120N1JX01 LCD Panel Shipment Information :

Shipping Address:

We will ship your order to the address provided at the time of payment. Please ensure the address you entered is correct and up-to-date to avoid any delivery issues.

Estimated Delivery Time:

Typically, your order will arrive within 15-35 days. For orders shipped to Brazil, the estimated delivery time is 20-40 days. Some countries or regions may experience longer shipping times.

Delayed Shipments:

If your parcel has not arrived within the expected timeframe, please contact us first before taking any further action. We are here to assist you and will work to provide a satisfactory resolution.

Dispute Policy:

Please refrain from opening a dispute within the first 60 days after placing your order. If your order has not arrived after 60 days, you may contact us to request a refund or a resend of the product.

Customs Duty and Import Tax:

We are not responsible for any customs duties or import taxes that may be applicable in your country. Please check your local customs regulations for more information.

Important Instructions for Receiving and Handling Your LQ120N1JX01 LCD Panel :

Inspecting the Package Upon Arrival:

When you receive the package, carefully inspect its condition.

If you notice any obvious damage, dents, or deformities, prepare to record a video as you open the package. This evidence is crucial for any potential claims.

Reporting Damaged Goods:

If you find that the LCD panel is damaged, immediately take detailed images and videos showing the damage.

Send these visuals to us to document the issue.

Our team will handle shipping-related damages but not those caused during installation. To secure your rights, provide the requested evidence and initiate a dispute for a refund if necessary.

Testing Before Installation:

After confirming the screen is undamaged, thoroughly test its functionality before proceeding with installation.

Do not attempt to install the screen yourself unless you are a professional. We recommend that installation be carried out by qualified technical personnel. We are not responsible for damages resulting from unprofessional installation.

Product Authenticity and Labels:

Each product from our store includes a unique anti-tear label.

Do not remove this label, as it verifies the product's authenticity and origin from our store.

Documenting Product Issues:

If you encounter any issues with the product, ensure that your video proof includes the labels as evidence.

Following these guidelines will help ensure a smooth process and protect your purchase rights. Thank you for your cooperation.

LQ120N1JX01 LCD Panel FAQ :

Q: Can You declare my order of LQ120N1JX01 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long will I receive my goods LQ120N1JX01 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Can you give me a discount if I need a large quantity of LQ120N1JX01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of LQ120N1JX01 ?

A: Of course!sample order is welcome !
