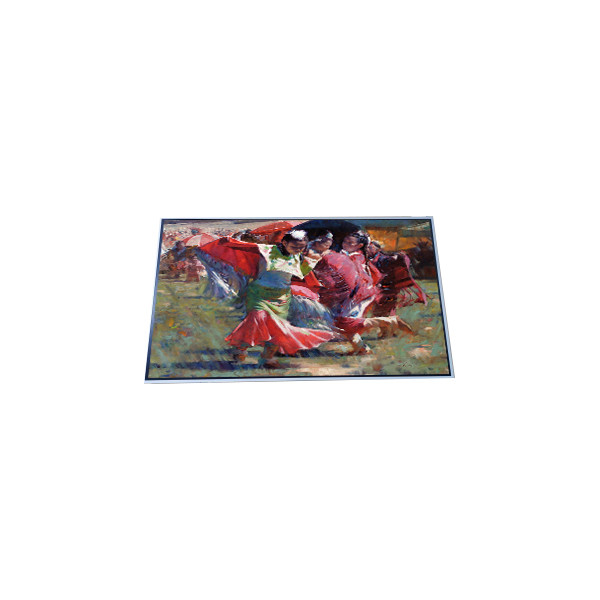

P281SVN01.0 28.1 inch LCD Screen Module 800*800 LCD Panel Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | P281SVN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | P281SVN01.0 | Diagonal Size: | 28.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×800 40PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 504(W)×504(H) Mm |
| Display Mode: | AMVA3, Normally Black, Transmissive | Display Colors: | 16.7M 70% NTSC |
| Best View On: | Symmetry | Application: | Digital Signage、Outdoor High Brightness |
Product Description
P281SVN01.0 28.1 inch LCD Screen Module 800*800 LCD Panel Display
P281SVN01.0 LCD Panel Product details :
| Brand | AUO |
| Model P/N | P281SVN01.0 |
| Diagonal Size | 28.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×800 40PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 504(W)×504(H) mm |
| Bezel Opening | 507(W)×507(H) mm |
| Outline Dim. | 526.8(W)×526.8(H)×28.2(D) mm |
| Luminance | 700 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Support Color | 16.7M 70% NTSC |
| Weight | 3.60Kgs |
| Frame Rate | 60Hz |
| Treatment | Antiglare (Haze 28%) |
| Contrast Ratio | 4000:1 (Typ.) (TM) |
| Response Time | 8 (Typ.)(G to G) |
| Operating Mode | AMVA3, Normally Black, Transmissive |
| Light Source | WLED, 50K hours , With LED Driver |
| Designed For | Digital Signage,Outdoor High Brightness |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit)51 pins Connector |
| Power Supply | 12V (Typ.) |
| Environment | Operating Temperature: -20 ~ 60 °C; Storage Temperature: -20 ~ 60 °C |
