New LQ106K1LA01C 10.6 inch TFT CCFL Panel LCD Screen

Brand Name:	Sharp
Model Number:	LQ106K1LA01C
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ106K1LA01C

Diagonal Size:

10.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)×768, WXGA 141PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

230.4(W)×138.24(H) Mm

Used For:

Laptop

Refresh Rate:

Supply Ability:

100000 Unit/Units per Month

Product Description

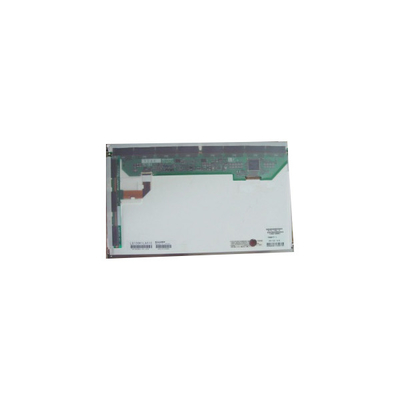

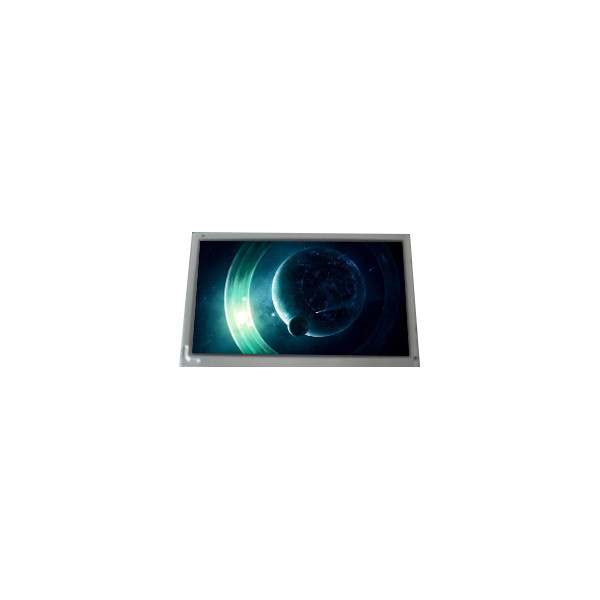

New LQ106K1LA01C 10.6 inch TFT CCFL Panel LCD Screen

LQ106K1LA01C LCD Panel Product details :

Brand	Sharp
Model P/N	LQ106K1LA01C
Diagonal Size	10.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×768, WXGA 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	230.4(W)×138.24(H) mm
Bezel Opening	-
Outline Dim.	242.4(W)×152(H)×5.6(D) mm
Luminance	240 cd/m² (Typ.)
View Direction	6 o'clock
Viewing Angle	70/70/50/60 (Typ.)(CR≥10)
Support Color	262K 48% NTSC
Form Style	Wedge (PCBA Bent, T≥5.2mm)
Frame Rate	60Hz
Treatment	Glare (Haze 0%), Hard coating (2H)
Contrast Ratio	350:1 (Typ.) (TM)
Response Time	30 (Typ.)(Tr+Td)
Operating Mode	TN, Normally White, Transmissive
Light Source	CCFL [1 pcs] , 10K hours , W/O Driver
Designed For	Laptop
Touch Panel	-
Interface Type	LVDS (1 ch, 6-bit)14 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C; Storage Temperature: -25 ~ 60 °C
New LQ106K1LA01C 10.6 inch TFT CCFL Panel LCD Screen

LQ106K1LA01C LCD Panel Payment Instructions :

Accepted Payment Methods:

We prioritize the safety and convenience of our customers by accepting payments through Escrow, which allows you to pay securely online using your Credit Card.

Payment Timeline:

To ensure the timely processing and shipping of your order, please make your payment within 3 days of placing the order. Prompt payment is appreciated and helps us maintain efficient service. If you encounter any issues or delays with your payment, please don't hesitate to contact us immediately. We are here to assist you and resolve any problems to ensure a smooth transaction.

LQ106K1LA01C LCD Panel Shipping and Package :

LQ106K1LA01C LCD Panel Shipment Information :

Shipping Address:

We will ship your order to the address provided at the time of payment. Please ensure the address you entered is correct and up-to-date to avoid any delivery issues.

Estimated Delivery Time:

Typically, your order will arrive within 15-35 days. For orders shipped to Brazil, the estimated delivery time is 20-40 days. Some countries or regions may experience longer shipping times.

Delayed Shipments:

If your parcel has not arrived within the expected timeframe, please contact us first before taking any further action. We are here to assist you and will work to provide a satisfactory resolution.

Dispute Policy:

Please refrain from opening a dispute within the first 60 days after placing your order. If your order has not arrived after 60 days, you may contact us to request a refund or a resend of the product.

Customs Duty and Import Tax:

We are not responsible for any customs duties or import taxes that may be applicable in your country. Please check your local customs regulations for more information.

Important Instructions for Receiving and Handling Your LQ106K1LA01C LCD Panel :

Inspecting the Package Upon Arrival:

When you receive the package, carefully inspect its condition.

If you notice any obvious damage, dents, or deformities, prepare to record a video as you open the package. This evidence is crucial for any potential claims.

Reporting Damaged Goods:

If you find that the LCD panel is damaged, immediately take detailed images and videos showing the damage.

Send these visuals to us to document the issue.

Our team will handle shipping-related damages but not those caused during installation. To secure your rights, provide the requested evidence and initiate a dispute for a refund if necessary.

Testing Before Installation:

After confirming the screen is undamaged, thoroughly test its functionality before proceeding with installation.

Do not attempt to install the screen yourself unless you are a professional. We recommend that installation be carried out by qualified technical personnel. We are not responsible for damages resulting from unprofessional installation.

Product Authenticity and Labels:

Each product from our store includes a unique anti-tear label.

Do not remove this label, as it verifies the product's authenticity and origin from our store.

Documenting Product Issues:

If you encounter any issues with the product, ensure that your video proof includes the labels as evidence.

Following these guidelines will help ensure a smooth process and protect your purchase rights. Thank you for your cooperation.

LQ106K1LA01C LCD Panel FAQ :

Q: Do you accept sample orders of LQ106K1LA01C ?

A: Of course!sample order is welcome !

Q: Can you give me a discount if I need a large quantity of LQ106K1LA01C?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of LQ106K1LA01C ?

A: we will give you tracking number then you can trace your order from website.

Q: How to make payment of LQ106K1LA01C ?

A: We accept T/T , Paypal , western union .
