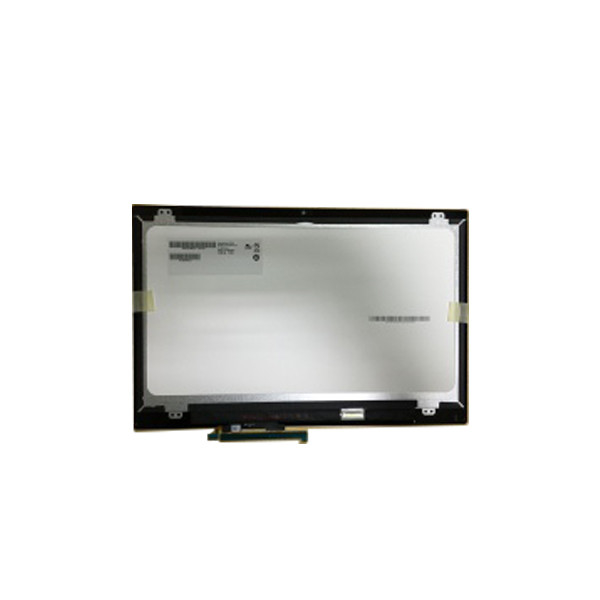

B140HAT02.0 14.0 inch 1920*1080 tft lcd display module

Brand Name:	AUO
Model Number:	B140HAT02.0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

B140HAT02.0

Diagonal Size:

14.0"

Panel Type:

A-Si TFT-LCD, Assembly

Resolution:

1920(RGB)×1080, FHD 157PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

309.14(W)×173.89(H) Mm

Display Mode:

AHVA, Normally Black, Transmissive

Display Colors:

262K 45%NTSC

Response Time:

30 (Typ.)(Tr+Td)

Application:

Laptop

Supply Ability:

100000 Unit/Units per Month

Product Description

B140HAT02.0 14.0 inch 1920*1080 tft lcd display module

B140HAT02.0 LCD Panel Product details :

Brand	AUO
Model P/N	B140HAT02.0
Diagonal Size	14.0"
Panel Type	a-Si TFT-LCD, Assembly
Resolution	1920(RGB)×1080, FHD 157PPI
Pixel Format	RGB Vertical Stripe
Active Area	309.14(W)×173.89(H) mm
Bezel Opening	-
Outline Size	330.4(W)×214.25(H)×4(D) mm
Surface	Hard coating (7H)
Brightness	200 cd/m² (Typ.)
Contrast Ratio	700:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	AHVA, Normally Black, Transmissive
Best View on	-
Response Time	30 (Typ.)(Tr+Td)
Display Colors	262K 45%NTSC
Lamp Type	WLED, 15K hours, With LED Driver
Frequency	60Hz
Touch Screen	PCAP, Optical Bonding, USB
Shape Style	-
Application	Laptop
Signal Interface	eDP (2 Lanes), eDP1.2, 30 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
