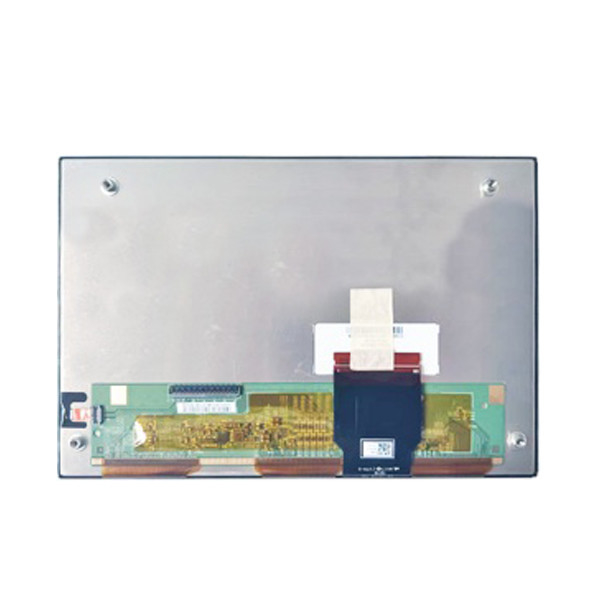

C101UAB01.0 10.1 inch lcd panel original for touch screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | C101UAB01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | C101UAB01.0 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1200, WUXGA 224PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 217.44(W)×135.9(H) Mm |
| Display Mode: | TN, Normally White, Transmissive | Display Colors: | 16.7M |
| Backlight: | WLED | Application: | Automotive Display |
Product Description
C101UAB01.0 10.1 inch lcd panel original for touch screen
C101UAB01.0 LCD Panel Product details :
| Brand | AUO |
| Model P/N | C101UAB01.0 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1200, WUXGA 224PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 217.44(W)×135.9(H) mm |
| Bezel Opening | - |
| Outline (mm) | 234.8×158.1 (H×V×D) |
| Treatment | Hard coating (3H) |
| Luminance | - |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | - |
| Response | 25 (Max.)(Tr+Td) ms |
| Good View at | - |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M |
| Backlight | WLED |
| Mass | 608±60g |
| Used for | Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | PCAP |
| Signal Type | LVDS (2 ch, 8-bit), Connector60 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C |
