LCD Screen Display Panel

HSD121JXN1-A11 12.1 inch 1024*768 LCD Screen Display

All Category

Floor Standing Digital Signage

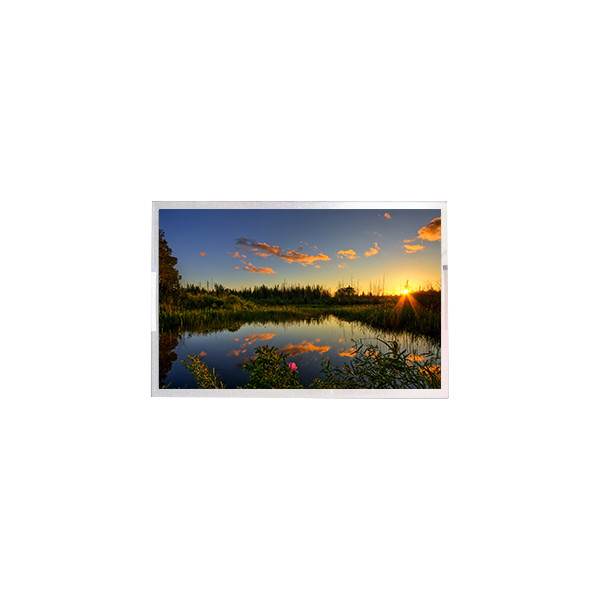

HSD121JXN1-A11 12.1 inch 1024*768 LCD Screen Display

Brand Name:	HannStar
Model Number:	HSD121JXN1-A11
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD121JXN1-A11

Diagonal Size:

12.1"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×768, XGA 105PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

245.76(W)×184.32(H) Mm

Display Mode:

IPS Pro, Normally Black, Transmissive

Display Colors:

262K/16.7M 72% NTSC

Best View On:

Symmetry

Application:

Automotive Display

Supply Ability:

100000 Unit/Units per Month

Product Description

HSD121JXN1-A11 12.1 inch 1024*768 LCD Screen Display

HSD121JXN1-A11 LCD Panel Product details :

Brand	HannStar
Model P/N	HSD121JXN1-A11
Diagonal Size	12.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 105PPI
Pixel Format	RGB Vertical Stripe
Active Area	245.76(W)×184.32(H) mm
Bezel Opening	-
Outline Dim.	260.5 × 204 × 8.9 (H×V×D)
Treatment	Antiglare, Hard coating (3H)
Luminance	600 cd/m² (Typ.)
Contrast Ratio	900 : 1 (Typ.) (TM)
View Direction	Symmetry
Response Time	30 (Typ.)(Tr+Td) ms
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	IPS Pro, Normally Black, Transmissive
Support Color	262K/16.7M 72% NTSC
Light Source	11S4P WLED , With LED Driver
Weight	470/480g (Typ./Max.)
Designed For	Automotive Display
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6/8-bit) , 20 pins Connector
Power Supply	3.3V (Typ.)
Environment	Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²)

HSD121JXN1-A11 LCD Panel Shipment :

· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.

· Please make sure to double check your address before completing your payment.

· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.

· Customers are responsible for customs taxes and duties where applicable.

· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!

HSD121JXN1-A11 LCD Panel Shipping and Package :

HSD121JXN1-A11 12.1 inch 1024*768 LCD Screen Display 0

HSD121JXN1-A11 LCD Panel Shipment Information :

Shipment Policies

Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.

Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.

Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.

Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.

Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.

HSD121JXN1-A11 LCD Panel Return and Warranty Information :

Return Policy

Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.

Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.

Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.

Warranty Policy

Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.

Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.

HSD121JXN1-A11 LCD Panel FAQ :

Q: How long is the warranty of HSD121JXN1-A11 ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of HSD121JXN1-A11 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of HSD121JXN1-A11 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my goods HSD121JXN1-A11 by credit card ?

A: Yes!you can use your credit card through your Paypal account.
