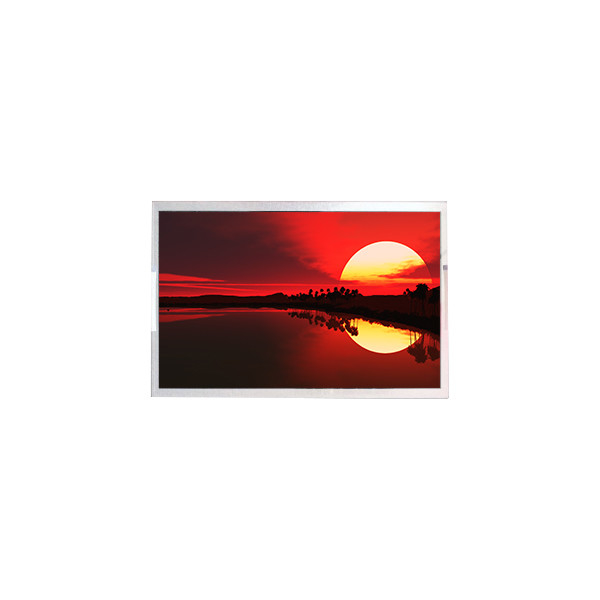

HSD101JHW1-F10 LCD Panel 10.1 inch 1280*720 LCD Screen Display

Brand Name:	HannStar
Model Number:	HSD101JHW1-F10
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD101JHW1-F10

Diagonal Size:

10.1"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)×720, WXGA 144PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

224.64(W)×126.36(H) Mm

Display Mode:

HS-IPS Pro, Normally Black, Transmissive

Display Colors:

16.7M 100% SRGB

Best View On:

Symmetry

Application:

Industrial /Outdoor High Brightness /Automotive Display

Supply Ability:

100000 Unit/Units per Month

Product Description

HSD101JHW1-F10 LCD Panel 10.1 inch 1280*720 LCD Screen Display

HSD101JHW1-F10 LCD Panel Product details :

Brand	HannStar
Model P/N	HSD101JHW1-F10
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×720, WXGA 144PPI
Pixel Format	RGB Vertical Stripe
Active Area	224.64(W)×126.36(H) mm
Bezel Opening	227.64(W)×129.36(H) mm
Outline Dim.	238.8(W)×148(H) ×12.5(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	1000 cd/m² (Typ.)
Contrast Ratio	900:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	30 (Typ.)(Tr+Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	HS-IPS Pro, Normally Black, Transmissive
Support Color	16.7M 100% sRGB
Light Source	8S4P WLED , 30K hours , Without Driver
Weight	346g (Typ.)
Designed For	Industrial /Outdoor High Brightness /Automotive Display
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 8-bit) , 50 pins FPC
Power Supply	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²)

HSD101JHW1-F10 LCD Panel Shipment :

· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.

· Please make sure to double check your address before completing your payment.

· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.

· Customers are responsible for customs taxes and duties where applicable.

· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!

HSD101JHW1-F10 LCD Panel Shipping and Package :

HSD101JHW1-F10 LCD Panel 10.1 inch 1280*720 LCD Screen Display 0

HSD101JHW1-F10 LCD Panel Shipment Information :

Shipment Policies

Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.

Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.

Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.

Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.

Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.

HSD101JHW1-F10 LCD Panel Return and Warranty Information :

Return Policy

Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.

Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.

Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.

Warranty Policy

Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.

Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.

HSD101JHW1-F10 LCD Panel FAQ :

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Do you accept sample orders of HSD101JHW1-F10 ?

A: Of course!sample order is welcome !

Q: How to make payment of HSD101JHW1-F10 ?

A: We accept T/T , Paypal , western union .

Q: Can I pay my order of HSD101JHW1-F10 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
