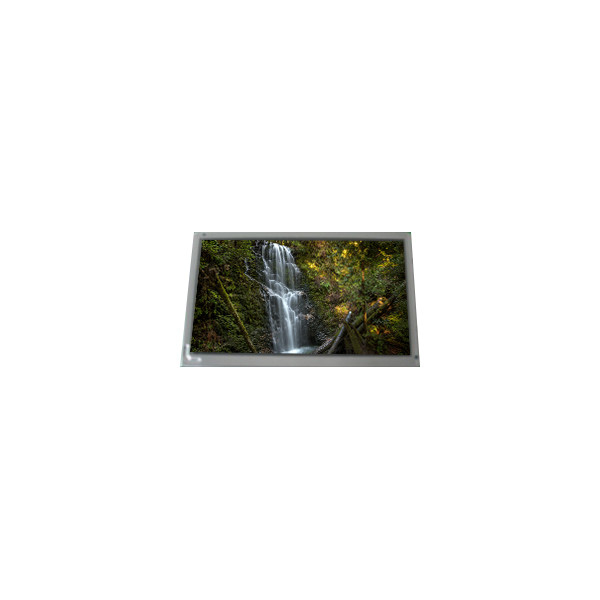

Original 10.1 inch LQ101R1SX01 2560*1600 TFT-LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ101R1SX01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ101R1SX01 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Panel Type: | Oxide TFT-LCD, LCM | Resolution: | 2560(RGB)×1600, WQXGA 299PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 216.96(W)×135.6(H) Mm |
| Designed For: | Pad & Tablet | Input Voltage: | 3.7V (Typ.) |
Product Description
Original 10.1 inch LQ101R1SX01 2560*1600 TFT-LCD Display Screen
LQ101R1SX01 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ101R1SX01 |
| Diagonal Size | 10.1" |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 2560(RGB)×1600, WQXGA 299PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 216.96(W)×135.6(H) mm |
| Bezel Opening | - |
| Outline Dim. | 228(H)×148.5(V)×4.6(D) mm |
| Treatment | Clear, Hard coating |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | 16.7M 50%NTSC |
| Light Source | WLED [7S6P], 10K hours, W/O Driver |
| Weight | 151±15g |
| Designed For | Pad & Tablet |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | MIPI (2 ch, 4 data lanes), 50 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
| Original 10.1 inch LQ101R1SX01 2560*1600 TFT-LCD Display Screen | |
LQ101R1SX01 LCD Panel Shipping and Package :
LQ101R1SX01 LCD Panel FAQ :
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long is the warranty of LQ101R1SX01 ?
A: NEW Product warranty is 90 days.
Q: How to order lcd panel LQ101R1SX01 ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
