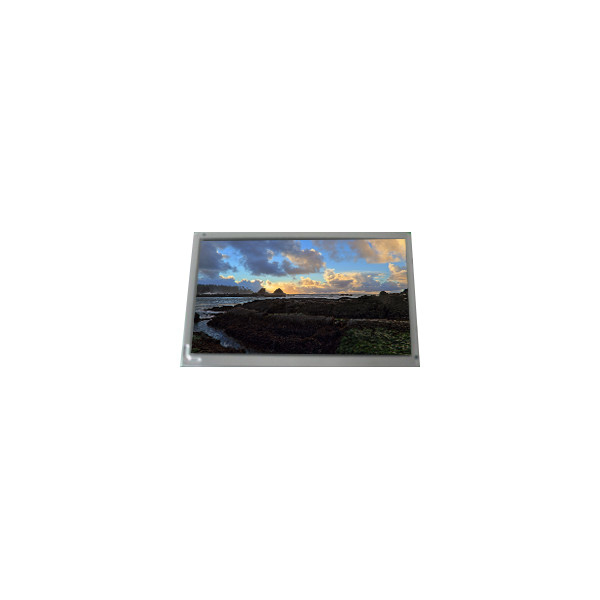

LQ101K5DZ01 10.1 inch 1280*422 LCD Screen Panel FOR Stretched Bar LCD
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ101K5DZ01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ101K5DZ01 | Diagonal Size: | 10.1" (Native Bar) |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(RGB)×422 133PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 242.88(W)×80.07(H) Mm |
| Designed For: | Stretched Bar LCD、Automotive Display | Input Voltage: | 3.7V (Typ.) |
Product Description
LQ101K5DZ01 10.1 inch 1280*422 LCD Screen Panel FOR Stretched Bar LCD
LQ101K5DZ01 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ101K5DZ01 |
| Diagonal Size | 10.1" (Native bar) |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×422 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 242.88(W)×80.07(H) mm |
| Bezel Opening | 244.88(W)×82.1(H) mm |
| Outline Dim. | 259.7(W)×96.5(H) mm |
| Luminance | 500 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Support Color | 16.2M 64% NTSC |
| Weight | 470g (Typ.) |
| Frame Rate | 60Hz |
| Treatment | Antiglare, Reflection 1.5% (Typ.) |
| Contrast Ratio | 2000:1 (Typ.) (TM) |
| Response Time | 15/5 (Typ.)(Tr/Td) |
| Operating Mode | ASV, Normally Black, Transmissive |
| Light Source | WLED, 10K hours , With LED Driver |
| Designed For | Stretched Bar LCD,Automotive Display |
| Touch Panel | Without |
| Interface Type | Parallel RGB (1 ch, 8-bit)68 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C; Storage Temperature: -40 ~ 85 °C |
| LQ101K5DZ01 10.1 inch 1280*422 LCD Screen Panel FOR Stretched Bar LCD | |
LQ101K5DZ01 LCD Panel Shipping and Package :
LQ101K5DZ01 LCD Panel FAQ :
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long is the warranty of LQ101K5DZ01 ?
A: NEW Product warranty is 90 days.
Q: How to order lcd panel LQ101K5DZ01 ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
