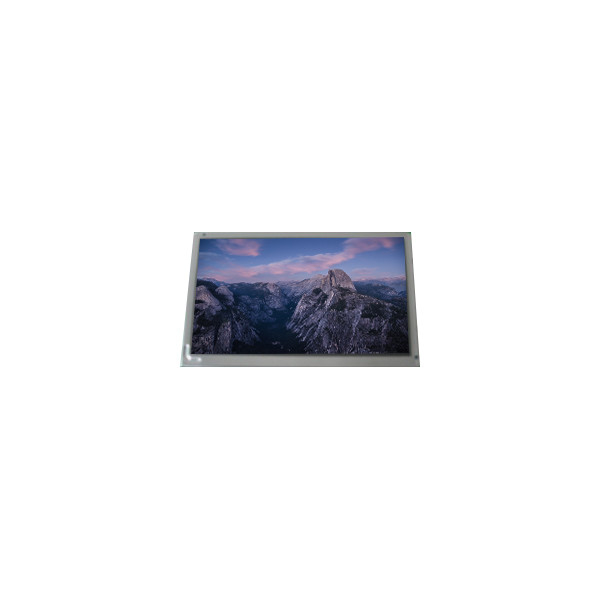

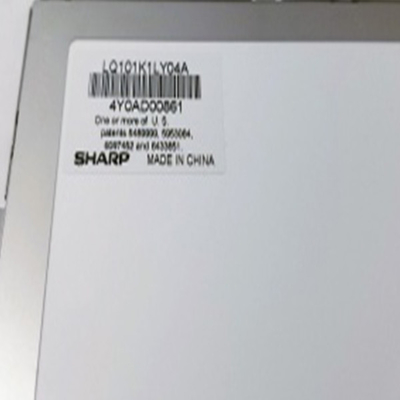

Original LQ101K1LY04A 10.1 inch LVDS LCD Display Panel FOR Pad Tablet
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ101K1LY04A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ101K1LY04A | Diagonal Size: | 10.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(RGB)×800, WXGA 149PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 216.96(W)×135.6(H) Mm |
| Designed For: | Pad & Tablet、Industrial | Input Voltage: | 3.7V (Typ.) |
Product Description
Original LQ101K1LY04A 10.1 inch LVDS LCD Display Panel FOR Pad Tablet
LQ101K1LY04A LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ101K1LY04A |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×800, WXGA 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 216.96(W)×135.6(H) mm |
| Bezel Opening | 220.56(W)×139.2(H) mm |
| Outline Size | 237.94(W)×156.66(H)×5.3(D) mm |
| Surface | Reflection 1.25% (Typ.) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display Mode | PSV, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 50%NTSC |
| Lamp Type | 7S6PWLED, 20K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 165/185g (Typ./Max.) |
| Application | Pad & Tablet,Industrial |

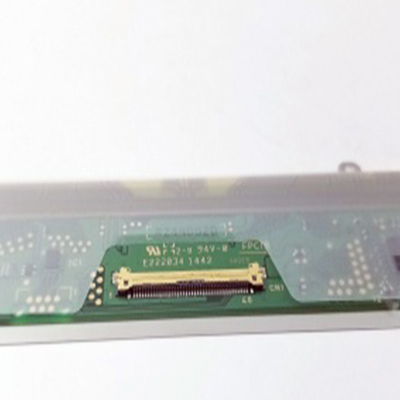

| Signal Interface | LVDS (1 ch, 8-bit), 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -10 ~ 60 °C ;Storage Temp.: -20 ~ 70 °C |
| Original LQ101K1LY04A 10.1 inch LVDS LCD Display Panel FOR Pad Tablet | |
LQ101K1LY04A LCD Panel Shipping and Package :
LQ101K1LY04A LCD Panel FAQ :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel LQ101K1LY04A I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order LQ101K1LY04A ship?
A: The order are shipped within 1-2 working days after received the payment.
