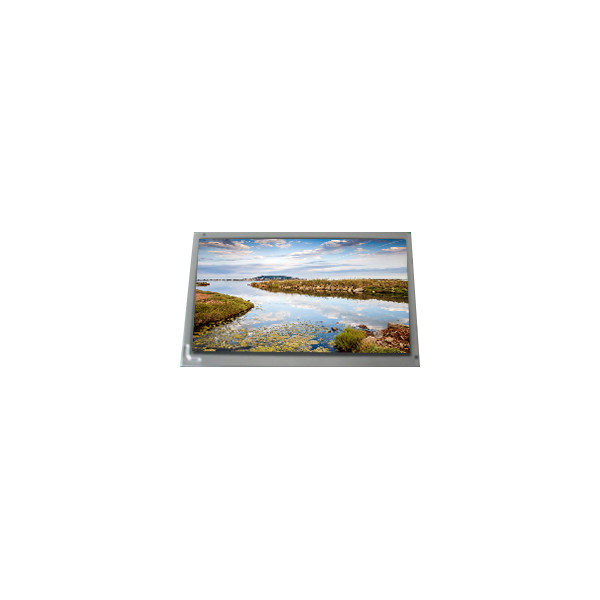

LQ097L1JY02A 9.7 inch eDP 56 pins LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ097L1JY02A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ097L1JY02A | Diagonal Size: | 9.7" |
|---|---|---|---|
| Panel Type: | Oxide TFT-LCD, LCM | Resolution: | 2048(RGB)×1536, QXGA 264PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 196.608(W)×147.456(H) Mm |
| Designed For: | Pad & Tablet | Frame Rate: | 60Hz |
Product Description
LQ097L1JY02A 9.7 inch eDP 56 pins LCD Display Screen
LQ097L1JY02A LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ097L1JY02A |
| Diagonal Size | 9.7" |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 2048(RGB)×1536, QXGA 264PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 196.608(W)×147.456(H) mm |
| Bezel Opening | - |
| Luminance | 440 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | - |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | O-mode FFS, Normally Black, Transmissive |
| Support Color | 16.7M 72%NTSC |
| Light Source | WLED, W/O Driver |
| Weight | - |
| Designed For | Pad & Tablet |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (4 Lanes), 56 pinsFPC |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
| LQ097L1JY02A 9.7 inch eDP 56 pins LCD Display Screen | |
LQ097L1JY02A LCD Panel Shipping and Package :
LQ097L1JY02A LCD Panel FAQ :
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel LQ097L1JY02A I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
