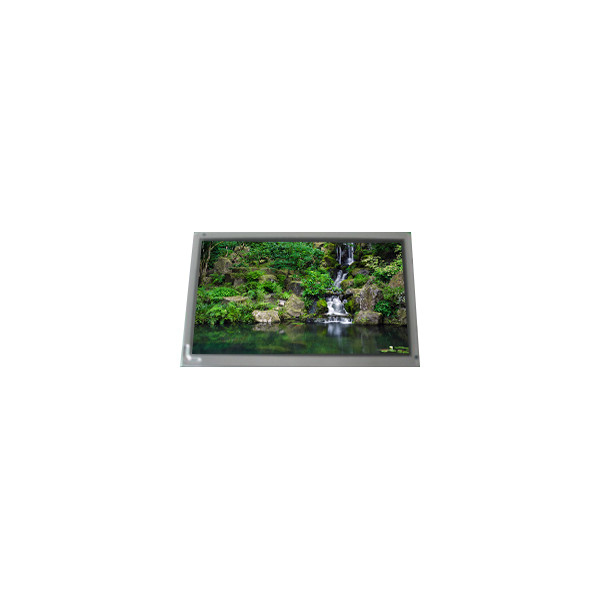

1280*720 LQ090K5LX01 9.0 inch LCD Display Screen Touch Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ090K5LX01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ090K5LX01 | Diagonal Size: | 9.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(RGB)×720, WXGA 163PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 198.72(W)×111.78(H) Mm |
| Designed For: | Industrial、Outdoor High Brightness、Automotive Display | Frame Rate: | 60Hz |
Product Description
1280*720 LQ090K5LX01 9.0 inch LCD Display Screen Touch Panel
LQ090K5LX01 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ090K5LX01 |
| Diagonal Size | 9.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×720, WXGA 163PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 198.72(W)×111.78(H) mm |
| Bezel Opening | - |
| Outline Dim. | 218(W)×135.2(H) mm |
| Treatment | Hard coating (3H), Reflection 3.0% (Typ.) |
| Luminance | 790 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | New Mode2, Normally Black, Transmissive |
| Support Color | 16.7M 70%NTSC |
| Light Source | WLED [9S4P], 15K hours, W/O Driver |
| Weight | 405/445g (Typ./Max.) |
| Designed For | Industrial,Outdoor High Brightness,Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | PCAP |
| Interface Type | LVDS (2 ch, 8-bit), 40 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| 1280*720 LQ090K5LX01 9.0 inch LCD Display Screen Touch Panel | |
LQ090K5LX01 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
LQ090K5LX01 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
LQ090K5LX01 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
LQ090K5LX01 LCD Panel Shipping and Package :
LQ090K5LX01 LCD Panel FAQ :
Q: When would you ship,IF I order LQ090K5LX01 now?
A: The order are shipped within 1-2 working days after received the payment.
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
