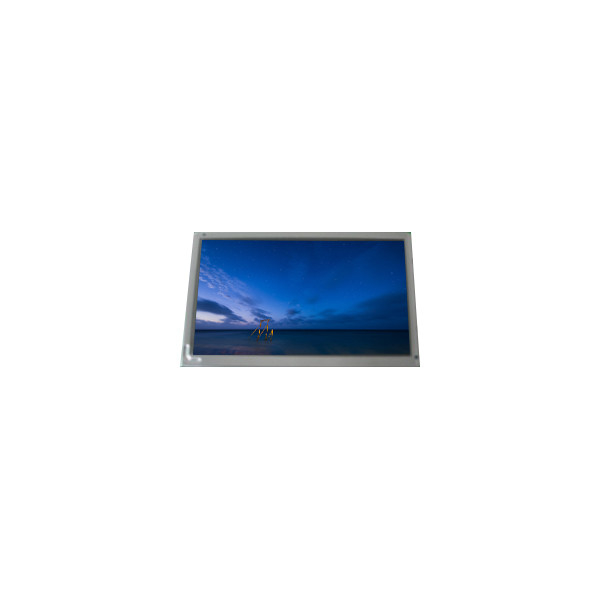

8.8 inch LQ088K9RA01 60Hz 1200:1 LCD Screen Display Panel

All Category

Floor Standing Digital Signage

Multi Touch Screen Panel

chance

info@yongs-hk.com

86-18575563918

Contact Now

8.8 inch LQ088K9RA01 60Hz 1200:1 LCD Screen Display Panel

Brand Name:	Sharp
Model Number:	LQ088K9RA01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ088K9RA01

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)×480, DVGA 155PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

209.28(W)×78.48(H) Mm

Designed For:

Automotive Display

Support Color:

262K 60%NTSC

Supply Ability:

100000 Unit/Units per Month

Product Description

8.8 inch LQ088K9RA01 60Hz 1200:1 LCD Screen Display Panel

LQ088K9RA01 LCD Panel Product details :

Brand	Sharp
Model P/N	LQ088K9RA01
Diagonal Size	8.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×480, DVGA 155PPI
Pixel Format	RGB Vertical Stripe
Active Area	209.28(W)×78.48(H) mm
Bezel Opening	214.3(W)×82.5(H) mm
Outline Dim.	247.6(H)×94.7(V)×11.8(D)mm
Treatment	Antiglare, Antireflection
Luminance	300 cd/m² (Typ.)
Contrast Ratio	1200:1 (Typ.) (TM) 4.5:1 (Typ.) (RF)
View Direction	Symmetry
Response Time	12/4 (Typ.)(Tr/Td)
Viewing Angle	-
Operating Mode	Normally Black, Transflective
Support Color	262K 60%NTSC
Light Source	WLED [4 strings], 10K hours, W/O Driver
Weight	300g (Max.)
Designed For	Automotive Display
Frame Rate	60Hz
Touch Panel	Without
Interface Type	RSDS (1 Channel), 60 pinsFPC
Power Supply	3.3/5.7/15.0/-12.0V (Typ.)(VCCS/VSHA/VDD/VEE DC)
Environment	Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²)
8.8 inch LQ088K9RA01 60Hz 1200:1 LCD Screen Display Panel

LQ088K9RA01 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

LQ088K9RA01 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

LQ088K9RA01 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

LQ088K9RA01 LCD Panel Shipping and Package :

8.8 inch LQ088K9RA01 60Hz 1200:1 LCD Screen Display Panel 0

LQ088K9RA01 LCD Panel FAQ :

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.

Q: What happen if the lcd panel LQ088K9RA01 I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .

Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
