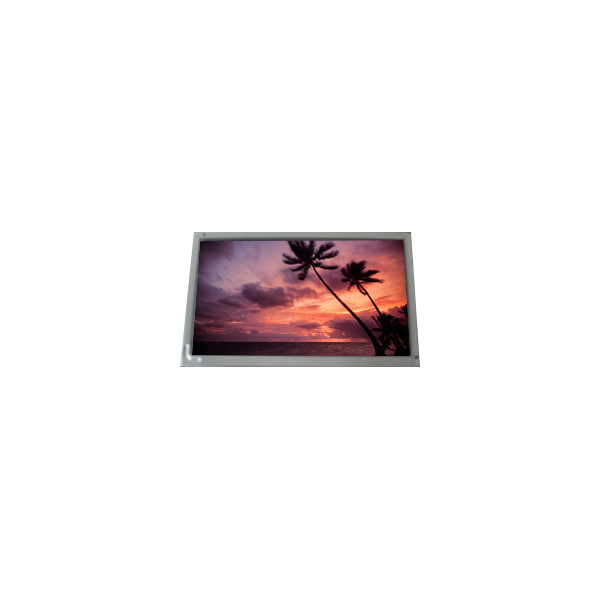

Original LQ088K9LA02 1280*480 70 pins LCD Screen Module

All Category

Floor Standing Digital Signage

Original LQ088K9LA02 1280*480 70 pins LCD Screen Module

Brand Name:	Sharp
Model Number:	LQ088K9LA02
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ088K9LA02

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)×480, DVGA 155PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

209.28(W)×78.48(H) Mm

Designed For:

Automotive Display

Support Color:

262K 45%NTSC

Supply Ability:

100000 Unit/Units per Month

Product Description

Original LQ088K9LA02 1280*480 70 pins LCD Screen Module

LQ088K9LA02 LCD Panel Product details :

Brand	Sharp
Model P/N	LQ088K9LA02
Diagonal Size	8.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×480, DVGA 155PPI
Pixel Format	RGB Vertical Stripe
Active Area	209.28(W)×78.48(H) mm
Bezel Opening	213.0(W)×81.0(H) mm
Outline Size	231.6(W)×94.7(H)×21(D) mm
Surface	Antiglare, Antireflection
Brightness	240 cd/m² (Typ.)
Contrast Ratio	360:1 (Typ.) (TM) 5:1 (Typ.) (RF)
Viewing Angle	-
Display Mode	Normally Black, Transflective
Best View on	Symmetry
Response Time	5/5 (Typ.)(Tr/Td)
Display Colors	262K 45%NTSC
Lamp Type	4 stringsWLED, 10K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	320g (Max.)
Application	Automotive Display
Signal Interface	RSDS (1 Channel), 70 pinsFPC
Environment	Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²)
Original LQ088K9LA02 1280*480 70 pins LCD Screen Module

LQ088K9LA02 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

LQ088K9LA02 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

LQ088K9LA02 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

LQ088K9LA02 LCD Panel Shipping and Package :

Original LQ088K9LA02 1280*480 70 pins LCD Screen Module 0

LQ088K9LA02 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of LQ088K9LA02 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of LQ088K9LA02 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can I pay my order of LQ088K9LA02 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
