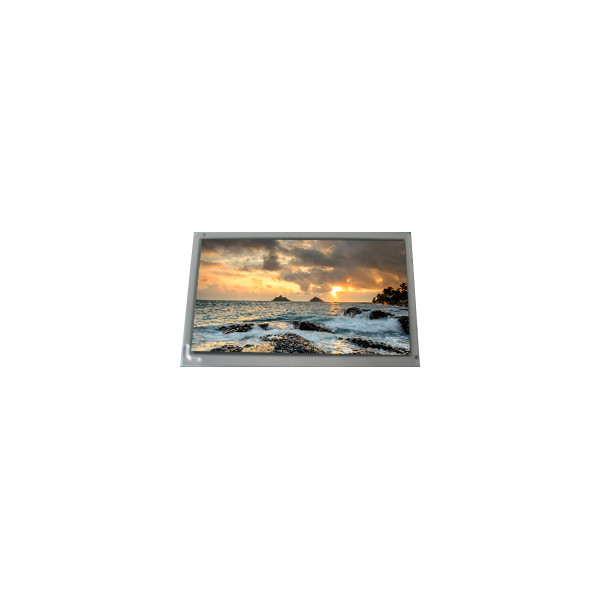

Original LQ088H9DZ02 8.8 inch 250 cd/m2 262K LCD Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ088H9DZ02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ088H9DZ02 | Diagonal Size: | 8.8" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 640(RGB)×240, HVGA 77PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 209.28(W)×78.48(H) Mm |
| Designed For: | Automotive Display | Support Color: | 262K |
Product Description
Original LQ088H9DZ02 8.8 inch 250 cd/m2 262K LCD Display Panel
LQ088H9DZ02 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ088H9DZ02 |
| Diagonal Size | 8.8" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×240, HVGA 77PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 209.28(W)×78.48(H) mm |
| Bezel Opening | 214.6(W)×83.9(H) mm |
| Outline(mm) | 231.6 × 103.3 (H×V×D) |
| Treatment | - |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | - |
| Viewing Angle | - |
| Response | - |
| Good View at | - |
| Work Mode | TN, Normally White, Transflective |
| Color Depth | 262K |
| Backlight | 2 pcsCCFL, No Driver |
| Mass | - |
| Used for | Automotive Display |
| Refresh Rate | - |
| Touchscreen | Without |
| Signal Type | Parallel RGB (1 ch, 6-bit), 31 pins Connector |
| Max. Ratings | Storage Temp.: -40 ~ 95 °C Operating Temp.: -40 ~ 85 °C |
| Original LQ088H9DZ02 8.8 inch 250 cd/m2 262K LCD Display Panel | |
LQ088H9DZ02 LCD Panel Shipping and Package :
LQ088H9DZ02 LCD Panel FAQ :
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
