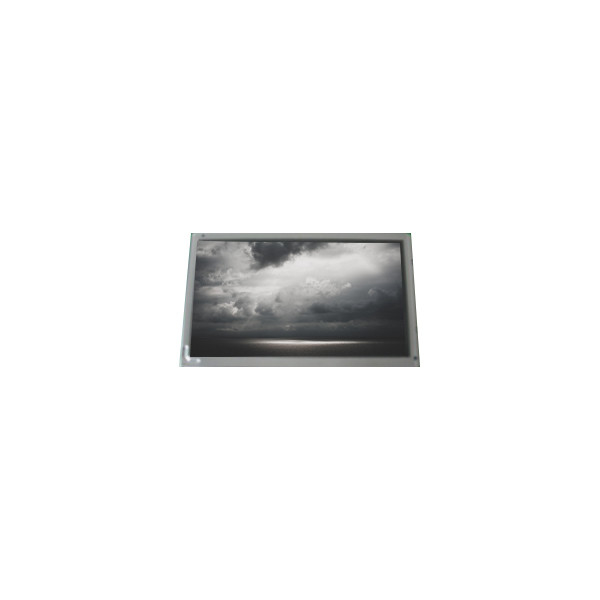

8.4 inch LQ084S3DG01R TFT LCD LCD Display Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ084S3DG01R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ084S3DG01R | Diagonal Size: | 8.4" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×600, SVGA 119PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 170.4(W)×127.8(H) Mm |
| Designed For: | Industrial | Frame Rate: | 60Hz |
Product Description
8.4 inch LQ084S3DG01R TFT LCD LCD Display Screen Panel
LQ084S3DG01R LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ084S3DG01R |
| Diagonal Size | 8.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 119PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 170.4(W)×127.8(H) mm |
| Bezel Opening | 175.15(W)×133.1(H) mm |
| Outline Dim. | 199.5(H)×149.5(V) mm |
| Treatment | - |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 250:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 20/40 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/45/65 (Typ.)(CR≥5) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K |
| Light Source | CCFL [2 pcs], 50K hours, W/O Driver |
| Weight | 405g (Max.) |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | Parallel RGB (1 ch, 6-bit), 30 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -10 ~ 65 °C ; Storage Temperature: -25 ~ 70 °C |
| 8.4 inch LQ084S3DG01R TFT LCD LCD Display Screen Panel | |
LQ084S3DG01R LCD Panel Shipping and Package :
LQ084S3DG01R LCD Panel FAQ :
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
