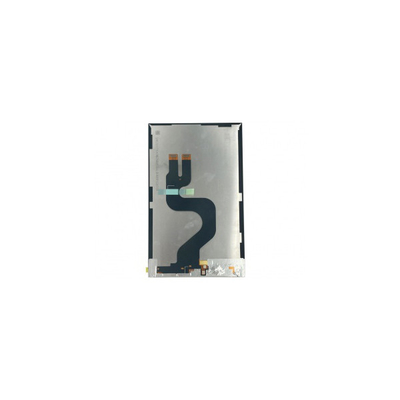

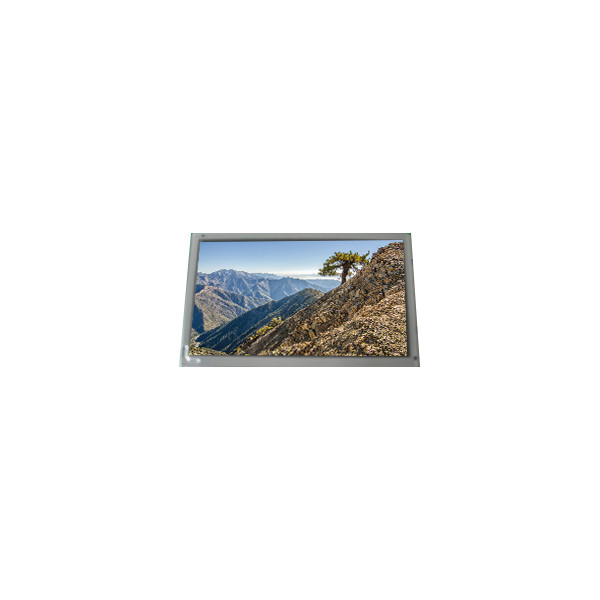

8.4 inch LQ084R1SX01 1600*2560 LCD Display Screen FOR Pad Tablet
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ084R1SX01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ084R1SX01 | Diagonal Size: | 8.4" |
|---|---|---|---|
| Panel Type: | Oxide TFT-LCD, LCM | Resolution: | 1600(RGB)×2560, WQXGA 359PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 113.04(W)×180.864(H) Mm |
| Designed For: | Pad & Tablet | Touch Screen: | Without |
Product Description
8.4 inch LQ084R1SX01 1600*2560 LCD Display Screen FOR Pad Tablet
LQ084R1SX01 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ084R1SX01 |
| Diagonal Size | 8.4" |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 1600(RGB)×2560, WQXGA 359PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 113.04(W)×180.864(H) mm |
| Bezel Opening | - |
| Outline Size | 117.04(W)×191.164(H)×3.2(D) mm |
| Brightness | 430 cd/m² (Typ.) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 100%sRGB |
| Frequency | 60Hz |
| Weight | 71.0g (Max.) |
| Surface | Clear, Hard coating |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time | 33 (Typ.)(Tr+Td) |
| Lamp Type | 7S4P WLED , 15K hours , Without Driver |
| Touch Screen | Without |
| Application | Pad & Tablet |
| Signal Interface | MIPI (2 ch, 4 data lanes), 80 pinsConnector |
| Input Voltage | 1.8/5.6/-5.6V (Typ.)(IOVCC/VSP/VSN) |
| Environment | Operating Temp.: -10 ~ 60 °C ;Storage Temp.: -20 ~ 70 °C |
| 8.4 inch LQ084R1SX01 1600*2560 LCD Display Screen FOR Pad Tablet | |
LQ084R1SX01 LCD Panel Shipping and Package :
LQ084R1SX01 LCD Panel FAQ :
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
