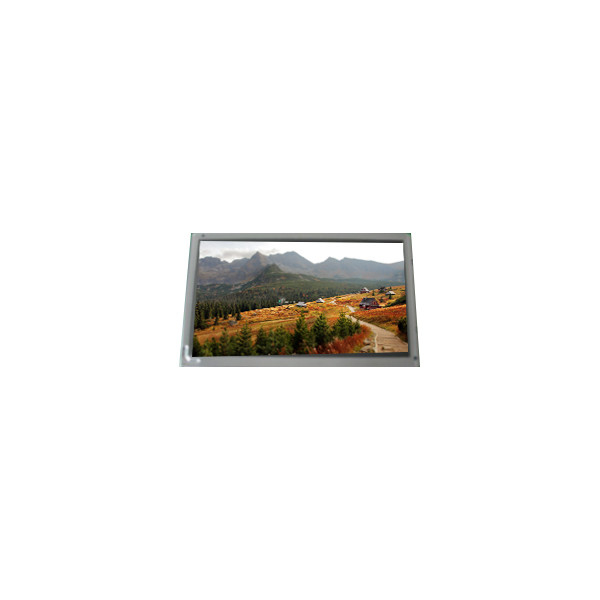

LQ080Y5DW01 8.0 inch LCD Screen Module FOR Automotive Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ080Y5DW01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ080Y5DW01 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 116PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 174(W)×104.4(H) Mm |
| Designed For: | Automotive Display | Support Color: | 16.7M |
Product Description
LQ080Y5DW01 8.0 inch LCD Screen Module FOR Automotive Display
LQ080Y5DW01 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ080Y5DW01 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 116PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 174(W)×104.4(H) mm |
| Bezel Opening | 177.4(W)×107.8(H) mm |
| Outline Dim. | 191.8(H)×120.7(V)×22(D) mm |
| Treatment | Antiglare |
| Luminance | 650 cd/m² (Typ.) |
| Contrast Ratio | - |
| View Direction | Symmetry |
| Response Time | 40 (Max.)(Tr+Td) |
| Viewing Angle | - |
| Operating Mode | ASV, Normally Black, Transmissive |
| Support Color | 16.7M |
| Light Source | WLED [8S3P], 10K hours |
| Weight | - |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | Parallel RGB (1 ch, 8-bit), 45 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| LQ080Y5DW01 8.0 inch LCD Screen Module FOR Automotive Display | |
LQ080Y5DW01 LCD Panel Shipping and Package :
LQ080Y5DW01 LCD Panel FAQ :
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel LQ080Y5DW01 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
