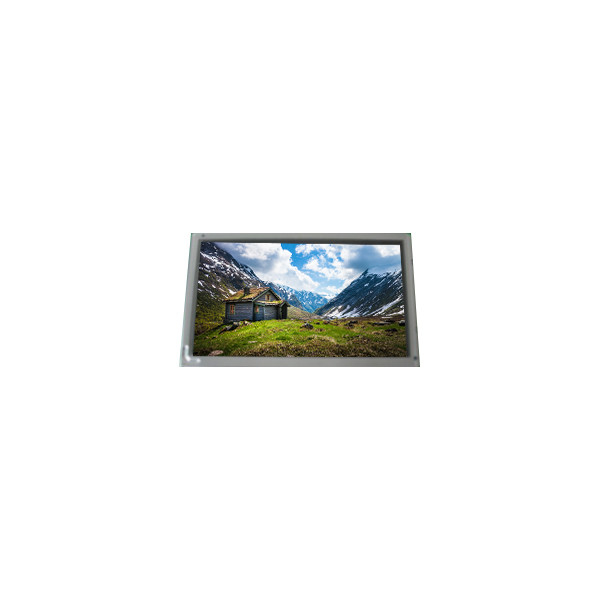

LQ080Y5DG05 8.0 inch 800*480 LCD Screen WLED Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ080Y5DG05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ080Y5DG05 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 116PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 174(W)×104.4(H) Mm |
| Application: | Automotive Display | Lamp Type: | WLED |
Product Description
LQ080Y5DG05 8.0 inch 800*480 LCD Screen WLED Module
LQ080Y5DG05 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ080Y5DG05 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 116PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 174(W)×104.4(H) mm |
| Bezel Opening | - |
| Outline Size | 187.9(W)×119.2(H) mm |
| Surface | Antiglare |
| Brightness | 650 cd/m² (Typ.) |
| Contrast Ratio | - |
| Viewing Angle | 65/65/40/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Display Colors | 262K |
| Lamp Type | WLED |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | - |
| Application | Automotive Display |
| Signal Interface | CMOS (1 ch, 6-bit) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 85 °C |
| LQ080Y5DG05 8.0 inch 800*480 LCD Screen WLED Module | |
LQ080Y5DG05 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
LQ080Y5DG05 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
LQ080Y5DG05 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
LQ080Y5DG05 LCD Panel Shipping and Package :
LQ080Y5DG05 LCD Panel FAQ :
Q: Do you accept sample orders of LQ080Y5DG05 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of LQ080Y5DG05 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of LQ080Y5DG05 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of LQ080Y5DG05 ?
A: Of course!If you make a large order, we will give you a discount.
