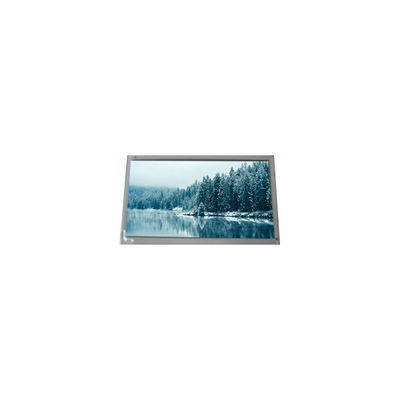

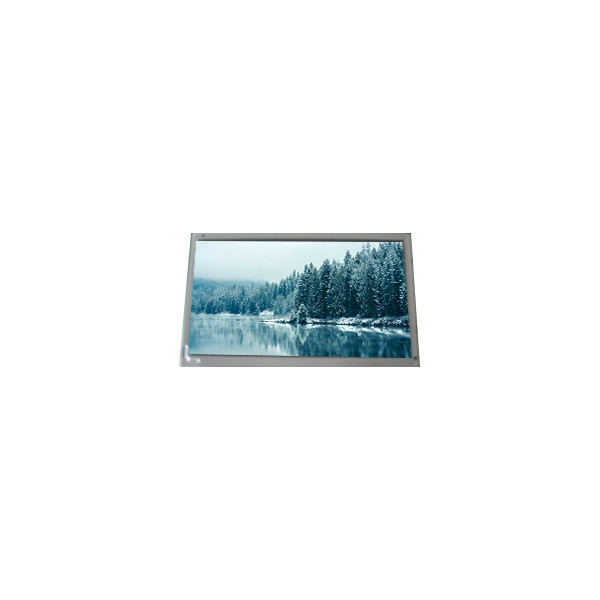

8.0 inch LQ080Y5DE30 RGB 800*480 LCD Display Panel Touch
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ080Y5DE30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ080Y5DE30 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 116PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 174(W)×104.4(H) Mm |
| Application: | Automotive Display | Display Colors: | 262K |
Product Description
8.0 inch LQ080Y5DE30 RGB 800*480 LCD Display Panel Touch
LQ080Y5DE30 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ080Y5DE30 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 116PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 174(W)×104.4(H) mm |
| Bezel Opening | - |
| Outline Size | 190(W)×120(H) mm |
| Surface | - |
| Brightness | 320 cd/m² (Typ.) |
| Contrast Ratio | - |
| Viewing Angle | - |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | - |
| Response Time | - |
| Display Colors | 262K |
| Lamp Type | WLED |
| Frequency | - |
| Touch Screen | Embeded Touch |
| Panel Weight | 439g (Typ.) |
| Application | Automotive Display |
| Signal Interface | Parallel RGB (1 ch, 6-bit) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 85 °C |
| 8.0 inch LQ080Y5DE30 RGB 800*480 LCD Display Panel Touch | |
LQ080Y5DE30 LCD Panel Shipping and Package :
LQ080Y5DE30 LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
