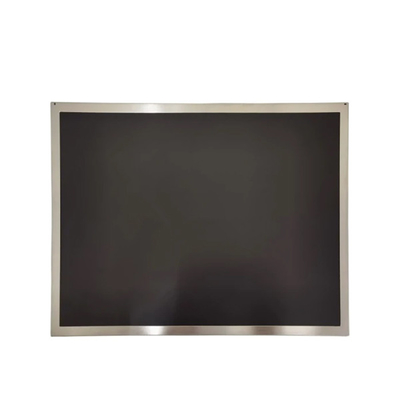

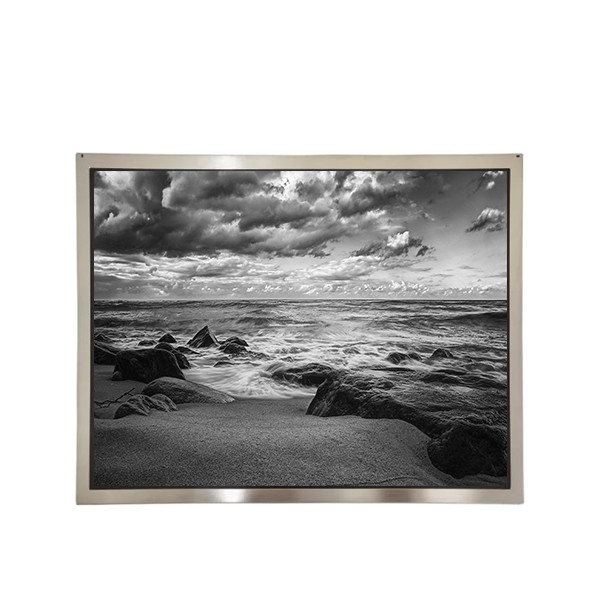

Original G150XTK01.2 15.0 inch LCD Screen Panel for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G150XTK01.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G150XTK01.2 | Diagonal Size: | 15.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 85PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 304.128(W)×228.096(H) Mm |
| Display Mode: | TN, Normally White, Transmissive | Display Colors: | 262K/16.2M 60%NTSC |
| Light Source: | WLED, 70K Hours, With LED Driver | Designed For: | Industrial |
Product Description
Original G150XTK01.2 15.0 inch LCD Screen Panel for Industrial
G150XTK01.2 LCD Panel Product details :
| Brand | AUO |
| Model P/N | G150XTK01.2 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | - |
| Outline Dim. | 326.5(W)×253.5(H)×10(D) mm |
| Treatment | - |
| Luminance | 390 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 5.7/2.3 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/70/80 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K/16.2M 60%NTSC |
| Light Source | WLED, 70K hours, With LED Driver |
| Weight | 1.15Kgs (Max.) |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | On-Cell Touch, USB |
| Interface Type | LVDS (1 ch, 6/8-bit), 20 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C |
G150XTK01.2 LCD Panel Shipping and Package :
G150XTK01.2 LCD Panel FAQ :
Q: If I order LC550EGG-FKM4 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of LC550EGG-FKM4 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of LC550EGG-FKM4 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my order of LC550EGG-FKM4 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods G150XTK01.2 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can You declare my order of G150XTK01.2 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods G150XTK01.2 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
