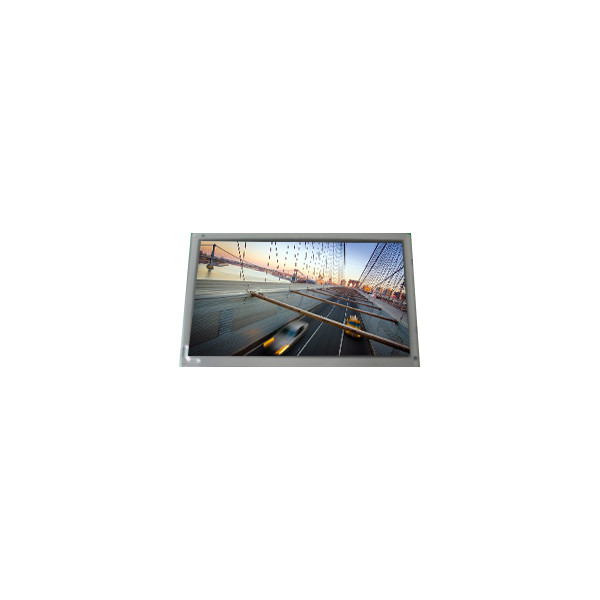

800*480 LQ080Y3LW01A 8.0 inch LVDS LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ080Y3LW01A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ080Y3LW01A | Diagonal Size: | 8.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 116PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 174(W)×104.4(H) Mm |
| Frame Rate: | 60Hz | Designed For: | Industrial、Automotive Display |
Product Description
800*480 LQ080Y3LW01A 8.0 inch LVDS LCD Display Screen
LQ080Y3LW01A LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ080Y3LW01A |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 116PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 174(W)×104.4(H) mm |
| Bezel Opening | 177.4(W)×107.8(H) mm |
| Outline Dim. | 191.8(W)×120.7(H) mm |
| Luminance | 650 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Support Color | 16.7M |
| Weight | 280g (Max.) |
| Frame Rate | 60Hz |
| Treatment | Antiglare |
| Contrast Ratio | 1800:1 (Typ.) (TM) |
| Response Time | 40 (Max.)(Tr+Td) |
| Operating Mode | ASV, Normally Black, Transmissive |
| Light Source | WLED [6S3P] , 10K hours , W/O Driver |
| Designed For | Industrial,Automotive Display |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit)32 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C; Storage Temperature: -40 ~ 90 °C; Vibration Level: 3.0G (29.4 m/s²) |
| 800*480 LQ080Y3LW01A 8.0 inch LVDS LCD Display Screen | |
LQ080Y3LW01A LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
LQ080Y3LW01A LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
LQ080Y3LW01A LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
LQ080Y3LW01A LCD Panel Shipping and Package :
LQ080Y3LW01A LCD Panel FAQ :
Q: How to make payment for LQ080Y3LW01A ?
A: We accept T/T , Paypal , western union .
Q: If I order LQ080Y3LW01A now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for Sharp LQ080Y3LW01A ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of LQ080Y3LW01A ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
